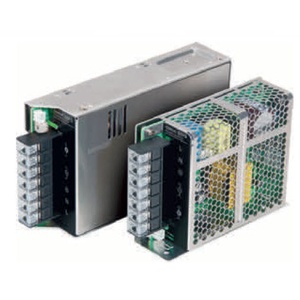

Omron S8FS-G15048C Power Supply

Omron S8FS-G15048C SMPS is a 150 W switch mode power supply configured to provide 48 VDC for industrial control equipment. It delivers 3.3 A rated output current and accepts 100 to 240 VAC input at 50/60 Hz. Direct mounting supports fixed installation inside electrical panels, while screw terminals provide input and output wiring connections. Typical efficiency is specified at 85% with 100 VAC input and 88% with both 200 VAC and 230 VAC input. The 48 VDC output differentiates this model from lower-voltage configurations within the same power class. Within the S8FS-G Series, the S8FS-G15048C provides a direct-mount 150 W, 48 VDC configuration. Compare other 48V SMPS models from Omron industrial controls.

Omron S8FS-G15048C Power Supply
BrandOmron
ProductPower Supply
Model NumberS8FS-G15048C

Omron S8FS-G15048C Power Supply - Technical Specifications

SpecificationValue
Power rating150 W
Output voltage48 VDC
Rated output current3.3 A
Terminal typeScrew Terminal
Mounting methodDirect Mounting
ConnectionTerminal blocks
Efficiency85 % typ.(at 100 VAC input) 88 % typ.(at 200 VAC input) 88 % typ.(at 230 VAC input)
Rated input voltage100 to 240 VAC
Rated input current3 A typ.(at 100 VAC input) 1.8 A typ.(at 200 VAC input)
Input Leakage current0.5 mA max.(at 100 VAC input) 1 mA max.(at 200 VAC input)
Input Frequency50/60 Hz
Output indicatorYes (color: green)
Output voltage variable range-10 to +15 % (With V.ADJ)
Start-up time1000 ms max.(at 100 VAC input) 1000 ms max.(at 200 VAC input)
Hold time11 ms typ.(at 100 VAC input) 55 ms typ.(at 200 VAC input)
Vibration resistance10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours
Shock resistance150 m/s2, in each 6 directions 3 times
Ambient temperature (Operating)-20 to 70 ?
Ambient temperature (Storage)-25 to 75 ?
Ambient humidity (OperatingStorage)90 %RH max.
Cooling fanYes
Weight500 g max.

The Omron S8FS-G15048C Power Supply provides 150 W rated power with a 48 VDC output and 3.3 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses direct mounting with screw terminals for fixed panel installation. Typical efficiency is specified at 85% with 100 VAC input and 88% with both 200 VAC and 230 VAC input. These values position the model within the 48 VDC class, which should be confirmed before current capacity, source voltage, or mounting arrangement is evaluated. The connected equipment must operate from 48 VDC and keep total current demand within the 3.3 A rating. Direct mounting requires adequate fixed panel surface, while screw terminals provide the electrical connection points for incoming AC and outgoing DC wiring.

The 100 to 240 VAC input range defines the supported source condition independently from the 48 VDC load requirement. Models with another nominal output voltage should not be treated as substitutes merely because their wattage is the same. Comparing products within the same 150 W power class can instead show how current changes as output voltage changes. For a 150 W direct-mount model that provides 12 VDC at a much higher 13 A output current, compare the Omron S8FS-G15012C.
