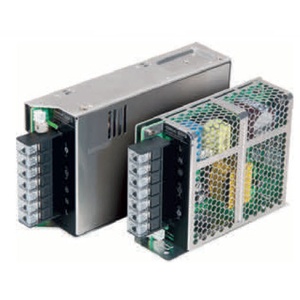

Omron S8FS-G30012C Power Supply
Omron S8FS-G30012C SMPS is a 300 W switch mode power supply designed to provide 12 VDC for industrial control equipment requiring higher current capacity. It delivers 25 A rated output current and accepts 100 to 240 VAC input at 50/60 Hz. Direct mounting supports fixed panel installation, while screw terminals provide defined input and output connections. Typical efficiency is 81% with 100 VAC input and 85% with both 200 VAC and 230 VAC input. The combination of 12 VDC output and 25 A current capacity places this model in a higher-power configuration within the series. Within the S8FS-G Series, the S8FS-G30012C provides a direct-mount 300 W, 12 VDC configuration. Compare other 300W 12V power supplies from Omron machine automation.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8FS-G30012C |
Omron S8FS-G30012C Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 300 W |
| Output voltage | 12 VDC |
| Rated output current | 25 A |
| Terminal type | Screw Terminal |
| Mounting method | Direct Mounting |
| Connection | Terminal blocks |
| Efficiency | 81 % typ.(at 100 VAC input) 85 % typ.(at 200 VAC input) 85 % typ.(at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 4.2 A typ.(at 100 VAC input) 2.1 A typ.(at 200 VAC input) |
| Input Leakage current | 0.5 mA max.(at 100 VAC input) 1 mA max.(at 200 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | -10 to +15 % (With V.ADJ) |
| Start-up time | 1000 ms max.(at 100 VAC input) 1000 ms max.(at 200 VAC input) |
| Hold time | 30 ms typ.(at 100 VAC input) 30 ms typ.(at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -20 to 70 ? |
| Ambient temperature (Storage) | -25 to 75 ? |
| Ambient humidity (OperatingStorage) | 90 %RH max. |
| Cooling fan | Yes |
| Weight | 700 g max. |
The Omron S8FS-G30012C Power Supply provides 300 W rated power with a 12 VDC output and 25 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses direct mounting with screw terminals for fixed electrical-panel installation. Typical efficiency is specified at 81% with 100 VAC input and 85% with both 200 VAC and 230 VAC input. The combination of 12 VDC output and 25 A capacity positions this model as a higher-current supply within its voltage class. The connected equipment should operate from 12 VDC, and combined load current should remain within the 25 A rating. Direct mounting requires sufficient panel surface, while screw-terminal access should be considered when arranging input and output conductors.
The input range should be matched to the available AC source independently from the 12 VDC requirement on the load side. Comparing models with the same nominal voltage provides a clearer capacity relationship because changes in wattage and current can be evaluated without changing voltage compatibility. A much lower-current 12 VDC model can therefore show the capacity difference within the same voltage class. For a 35 W configuration supplying 12 VDC at 3 A with DIN rail mounting, compare the Omron S8FS-C03512.
