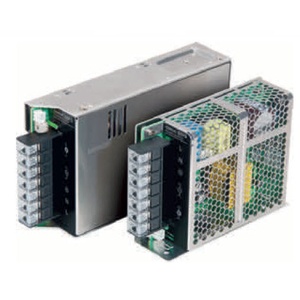

Omron S8FS-G15024C Power Supply
Omron S8FS-G15024C SMPS is a 150 W switch mode power supply designed to provide 24 VDC for industrial control equipment. It delivers 6.5 A rated output current and accepts 100 to 240 VAC input at 50/60 Hz. Direct mounting supports fixed installation inside electrical panels, while screw terminals provide input and output wiring connections. Typical efficiency is specified at 87% with 100 VAC input, 89% with 200 VAC input, and 90% with 230 VAC input. The combination of 24 VDC output and 6.5 A capacity places this model in a commonly used industrial DC voltage class. Within the S8FS-G Series, the S8FS-G15024C provides a direct-mount 150 W, 24 VDC configuration. Compare other 150W 24V power supplies from Omron industrial automation.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8FS-G15024C |
Omron S8FS-G15024C Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 150 W |
| Output voltage | 24 VDC |
| Rated output current | 6.5 A |
| Terminal type | Screw Terminal |
| Mounting method | Direct Mounting |
| Connection | Terminal blocks |
| Efficiency | 87 % typ.(at 100 VAC input) 89 % typ.(at 200 VAC input) 90 % typ.(at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 3 A typ.(at 100 VAC input) 1.8 A typ.(at 200 VAC input) |
| Input Leakage current | 0.5 mA max.(at 100 VAC input) 1 mA max.(at 200 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | -10 to +15 % (With V.ADJ) |
| Start-up time | 1000 ms max.(at 100 VAC input) 1000 ms max.(at 200 VAC input) |
| Hold time | 10 ms typ.(at 100 VAC input) 55 ms typ.(at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -20 to 70 ? |
| Ambient temperature (Storage) | -25 to 75 ? |
| Ambient humidity (OperatingStorage) | 90 %RH max. |
| Cooling fan | No |
| Weight | 500 g max. |
The Omron S8FS-G15024C Power Supply provides 150 W rated power with a 24 VDC output and 6.5 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses direct mounting with screw terminals for fixed panel installation. Typical efficiency is specified at 87% with 100 VAC input, 89% with 200 VAC input, and 90% with 230 VAC input. These specifications place the model in the 24 VDC class, where output voltage, load current, incoming source, panel surface, and terminal access form the principal selection criteria. The connected equipment should require 24 VDC and keep combined current demand within the 6.5 A rating.
Direct mounting requires adequate fixed panel space, while screw terminals define the wiring interface for incoming AC and outgoing DC connections. The input range should be evaluated independently from load capacity because source voltage and output voltage describe different parts of the conversion process. A different-voltage supply should not be treated as interchangeable only because its wattage or current appears suitable. For comparison with a 200 W DIN rail configuration that changes the output requirement to 5 VDC while increasing current to 40 A, compare the Omron S8FS-C20005J.
