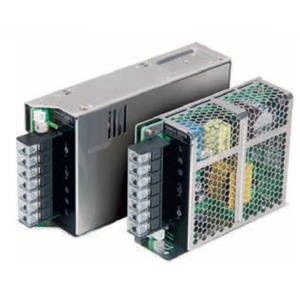

Omron S8FS-G03012C Power Supply
The Omron S8FS-G03012C Power Supply offers 30 W power rating, 12 VDC output voltage, and 3 A rated current. This dependable SMPS Power Supply is designed for Direct Mounting and includes Screw Terminal for safe and reliable wiring connections.Operating on 100 to 240 VAC input voltage at 50/60 Hz frequency, it ensures steady DC performance even in unstable input conditions. Manufactured by Omron, part of the Omron Power Supply family of Switch Mode Power Supplies, available under the Omron S8FS-G Series.
| Brand | Omron |
| Product Type | SMPS |
| Model Number | S8FS-G03012C |
Omron S8FS-G03012C Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 30 W |
| Output voltage | 12 VDC |
| Connection | Terminal blocks |
| Terminal type | Screw Terminal |
| Mounting | Direct Mounting |
| Efficiency | 84 % typ.(at 100 VAC input) 86 % typ.(at 200 VAC input) 86 % typ.(at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Input Frequency | 50/60 Hz |
| Rated input current | 0.72 A typ.(at 100 VAC input) 0.43 A typ.(at 200 VAC input) |
| Input Leakage current | 0.5 mA max.(at 100 VAC input) 1 mA max.(at 200 VAC input) |
| Rated output current | 3 A |
| Output voltage variable range | -10 to +15 % (With V.ADJ) |
| Start-up time | 1000 ms max.(at 100 VAC input) 1000 ms max.(at 200 VAC input) |
| Hold time | 11 ms typ.(at 100 VAC input) 60 ms typ.(at 200 VAC input) |
| Output indicator | Yes (color: green) |
| Vibration resistance | 10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -20 to 70 β |
| Ambient temperature (Storage) | -25 to 75 β |
| Ambient humidity (OperatingStorage) | 90 %RH max. |
| Cooling fan | No |
| Weight | 250 g max. |
The Omron S8FS-G03012C is frequently assessed alongside related units in the Omron Switch Mode Power Supply range, as these SMPS models share comparable wiring behaviour, thermal characteristics, load endurance, and panel integration features. Engineers often evaluate related models such as Omron S8FS-G60012C (600 W, 12 VDC, 50 A, Direct Mounting), Omron S8FS-C20036J (200 W, 36 VDC, 5.9 A, DIN rail), and Omron S8FS-C02512D (25 W, 12 VDC, 2.1 A, DIN rail) when configuring power rails for PLC racks, servo drives, motion assemblies, and distributed I/O terminals. Comparing specifications like power rating, output voltage behaviour, continuous output current, and mounting orientation helps maintain predictable voltage delivery across machinery with dynamic load patterns. The S8FS-G03012C fits smoothly into conveyors, dosing modules, electrical frames, and compact control panels where a dependable Omron SMPS Power Supply is required. These related SMPS variants also support unified wiring layouts, easier spare handling, and consistent power distribution across multi-panel automation systems.
