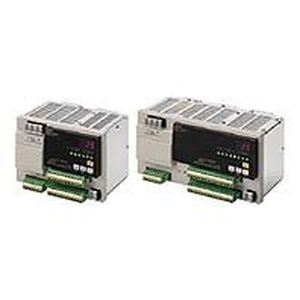

Omron S8AS-48008N Power Supply
Omron S8AS-48008N SMPS is a 480 W switch mode power supply designed for monitored DC distribution in industrial automation panels. It accepts 100 to 240 VAC at 50/60 Hz and is specified with an 8 VDC output and 20 A rated current. DIN rail mounting supports organized cabinet installation, while screw or screwless terminals provide flexible wiring options. A green indicator shows output status, and the unit supports multi-output control, current monitoring, alarm signaling, and remote communication. Within the S8AS Series, the S8AS-48008N provides a 480 W monitored SMPS configuration. For machine-control DC power requirements, compare the industrial SMPS range from Omron industrial controls.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8AS-48008N |
Omron S8AS-48008N Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 480 W |
| Output voltage | 8 VDC |
| Rated output current | 20 A |
| Terminal type | Screw,Screwless Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 80% typ. (at 100 VAC input) 80% typ. (at 200 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 7.4 A max. (at 100 VAC input) 3.9 A max. (at 200 VAC input) |
| Input Leakage current | 0.5 mA max. (at 100 VAC input) 1.0 mA max. (at 200 VAC input) |
| Input Frequency | 50/60Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | ±10% (With V.ADJ) |
| Start-up time | 3000 ms typ. (at 100 VAC input) 3000 ms typ. (at 200 VAC input) |
| Hold time | 20 ms min. (at 100 VAC input) 20 ms min. (at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -10 to 60 ? |
| Ambient temperature (Storage) | -25 to 65 ? |
| Ambient humidity (OperatingStorage) | 25 to 85% |
| Cooling fan | No |
| Weight | 2400 g max. |
The Omron S8AS-48008N Power Supply is specified at 480 W for monitored DC distribution in industrial automation systems. It accepts 100 to 240 VAC at 50/60 Hz and the supplied data lists an 8 VDC output with 20 A rated current. DIN rail mounting supports structured panel installation, while screw or screwless terminals provide two wiring methods. Typical efficiency is 80% at both 100 VAC and 200 VAC input. Rated input current is 7.4 A maximum at 100 VAC and 3.9 A maximum at 200 VAC. Leakage current is specified at 0.5 mA maximum at 100 VAC and 1.0 mA maximum at 200 VAC. A green indicator provides output status during operation.
Start-up time is specified at 3000 ms typical, while hold time is at least 20 ms under the stated input conditions. Operating temperature extends from -10°C to 60°C, while storage temperature ranges from -25°C to 65°C. Operating humidity is specified from 25% to 85%. Vibration resistance covers 10 to 55 Hz at 0.375 mm single amplitude, and shock resistance is rated at 150 m/s². These values help determine whether the power supply matches the required output, current demand, monitored distribution functions, input conditions, terminal arrangement, and DIN rail installation. For another S8AS model with the same listed 480 W, 8 VDC, and 20 A specification, see Omron S8AS-48008.
