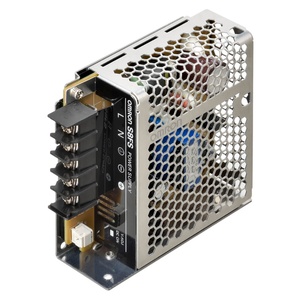

Omron S8FS-C01512J Power Supply

Omron S8FS-C01512J SMPS is a 15 W switch mode power supply configured to provide 12 VDC for industrial control equipment. It delivers 1.3 A rated output current and uses single-phase input, direct mounting, and screw terminals for fixed panel wiring. The metal-frame unit has a stated efficiency of 85% and supports an allowable input range of 85 to 264 VAC or 120 to 370 VDC. Its dimensions are 28 mm wide, 51 mm high, and 78 mm deep, with the terminal block facing upward. Within the S8FS-C Series, the S8FS-C01512J provides a compact 12 V SMPS configuration. For different DC requirements, compare 12V power supplies from Omron control equipment.

Omron S8FS-C01512J Power Supply
BrandOmron
ProductPower Supply
Model NumberS8FS-C01512J

Omron S8FS-C01512J Power Supply – Technical Specifications

SpecificationValue
Power rating15W
Output voltage12V
Rated output current1.3A
Terminal typeScrew
PhaseSingle
Number of output branches1
Allowable supply voltage DC120-370 V
Mounting methodDirect mounting
TypeMetal frame
Efficiency85%
Temperature range-20-60?
Rated supply voltage at AC 50 Hz100-240V
Height28mm
Width51mm
Depth78mm
FeaturesTerminal block facing upward
Allowable supply voltage AC85-264 V

The Omron S8FS-C01512J Power Supply is a 15 W switch mode power supply designed to provide 12 VDC with 1.3 A rated output current. It uses single-phase input, direct mounting, and screw terminals for installation inside industrial control panels. The metal-frame unit has a stated efficiency of 85%. Rated supply voltage is 100 to 240 VAC, while the allowable AC input range extends from 85 to 264 V. An allowable DC supply range of 120 to 370 V is also specified. Its dimensions are 28 mm wide, 51 mm high, and 78 mm deep, with the terminal block facing upward. These electrical and dimensional specifications position the unit as a compact 12 VDC power supply for applications with limited panel space and moderate current demand.

The connected equipment should require 12 VDC and have a combined current demand within the 1.3 A rating. Direct mounting should be checked against the available panel surface, while the 78 mm depth and upward-facing terminal block should be considered when planning enclosure clearance. Screw terminals provide fixed wiring for the incoming supply and DC output. The allowable input ranges support both AC and DC source conditions within the stated limits. Model selection should therefore consider voltage, current, mounting method, terminal access, and installation space together rather than relying on rated power alone. For a higher-output 12 VDC model rated at 35 W with 3 A current, see Omron S8FS-C03512J.
