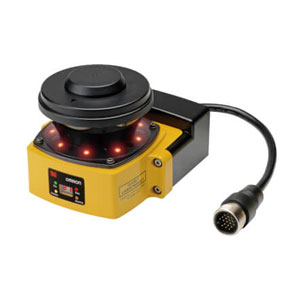

Omron OS32C-WIN KT Safety Laser Scanner
Omron OS32C-WIN-KT is a replacement scan window for OS32C safety laser scanners, designed for maintenance when the optical window requires replacement while the remaining scanner components are still serviceable. The scan window sits in the optical path used by the OS32C sensor to monitor configured safety and warning zones. Compatible scanners support a 270° detection field, 0.4° angular resolution, Type 3 classification, and PLd/Safety Category 3 applications. Replacing the window does not change the scanner’s protective range, object resolution, or cable-entry configuration; those depend on the installed sensor and I/O arrangement. The OS32C-WIN-KT belongs to the OS32C Series within the scanner maintenance range from Omron industrial safety products.
| Brand | Omron |
| Product | Safety Laser Scanner |
| Model Number | OS32C-WIN KT |
Omron OS32C-WIN KT Safety Laser Scanner - Technical Specifications
| Specification | Value |
|---|---|
| Max. Operating Range / Description | Scan window |
| Sensor Type | Type 3 Safety Laser Scanner |
| Performance Level (PL)/ Safety Category | PLd/Safety Category 3 |
| Detection Capability | Configurable via the configuration tool; Non-transparent with a diameter of 30, 40, 50, 70mm (1.8% reflectivity or greater) (default: 70 mm) |
| Monitoring Zone | Monitoring Zone Set Count: (Safety Zone + 2 Warning Zones) x 70 sets |
| Operating Range | Safety Zone: 1.75 m (min. obj. resolution of 30 mm) 2.5 m (min. obj. resolution of 40 mm) 3.0 m (min. obj. resolution of 50 mm or 70 mm) Warning Zone: 10.0 m |
| Maximum Measurement Error | 100 mm (at range of 3 m or less); 110 mm (at distance greater than 3 m and up to 4m) |
| Detection Angle | 270° |
| Angular Resolution | 0.4° |
| Laser Beam Diameter | 6 mm at optics cover, 14 mm (typical) at 3 m. |
| Laser Scan Plane Height | 67mm from the bottom of the scanner |
| Response Time | Response time from ON to OFF: From 80 ms (2 scans) to 680 ms (up to 17 scans) *8 Response time from OFF to ON: Response time from ON to OFF + 100 ms to 60 s (Configurable) |
| Power Consumption | Normal operation: 5 W max; Standby mode: 3.75 W (without output load) |
| Safety Output (OSSD) | PNP transistor x 2, load current of 250 mA max., residual voltage of 2 V max.; load capacity of 2.2 µF max., leak current of 1 mA max. |
| Auxiliary Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Warning Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Connection Type | Power Cable: 18-pin mini-connector (pigtail) Communication Cable: M12, 4-pin connector |
| Ambient Temperature | Operation: -10 to 50 °C, Storage: -25 to 70 °C |
| Ambient Humidity | Operation & Storage: 95% RH max., non-condensing |
| Insulation Resistance | 20 MΩ or higher (500 VDC) |
| Enclosure Rating | IP65 |
| Dimensions (WxHxD) | 133.0 x 104.5 x 142.7 mm (except cable) |
| Power Cable | Up to 30 m |
| Weight (Main Unit only) | 1.3 kg |
The Omron OS32C-WIN-KT Safety Laser Scanner Replacement Scan Window is designed for maintenance of the optical window used by compatible OS32C scanner units. The scan window sits in the optical path through which the scanner monitors configured safety and warning zones, so keeping this surface in serviceable condition is important for the sensing system. Compatible OS32C platforms support a 270° detection field, 0.4° angular resolution, Type 3 classification, and PLd/Safety Category 3 applications. Depending on the installed sensor block, the scanner can also support different object-resolution settings and protective ranges for machine and area monitoring.
OS32C-WIN-KT is a replacement optical component rather than a complete scanner or sensor block. Replacing the scan window does not independently change the scanner’s protective distance, object resolution, response time, OSSD behavior, or cable-entry arrangement; those functions remain determined by the installed sensor and I/O configuration. The replacement window is therefore most relevant when the optical window requires service but the remaining scanner components are suitable for continued use. This can help restore the physical optical interface without changing the overall scanner configuration. This makes it a service-focused part for maintaining the scanner’s optical path. For a related replaceable component that contains the active 3 m sensing section, see the OS32C-SN replacement sensor block.
