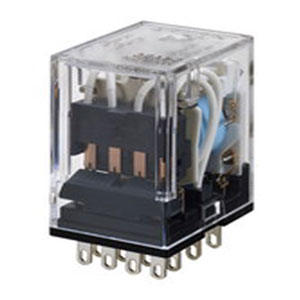

Omron MY4Z-CBG DC24 Relay

Name: Omron MY4Z-CBG DC24
Brand: Omron
SKU: MY4Z-CBG DC24
Rating: 4.5 (4 reviews)

The Omron MY4Z-CBG DC24 Relay delivers reliable switching performance with a Closed type (cover) protective housing, Plug-in terminal structure compatible with a Socket for secure mounting. It provides a 4PDT contact form with a Bifurcated crossbar contact method. Supporting a max contact current of AC: 1 A DC: 1 A loads. Built with a 650 Ω coil resistance, it ensures dependable response with an 80% max. operate voltage and 10 % min. release voltage. Supporting 250 VAC 125 VDC maximum contact voltage. Manufactured by Omron, listed under Omron Relay solutions, this model belongs to theMY Series.

Datasheet

Brand	Omron
Product	Relay
Model Number	MY4Z-CBG DC24

Omron MY4Z-CBG DC24 Relay - Technical Specifications

Specification	Value
Terminal Structure	Plug-in terminal
Degree Of Protection	Closed type (cover)
Coil Resistance	650 Ω
Operate Voltage Set Voltage	80% max.
Release Voltage Reset Voltage	10 % min.
Contact Rated Load	220 VAC 1 A (Resistive load) 220 VAC 0.3 A (Inductive load (cosφ = 0.4)) 24 VDC 1 A (Resistive load) 24 VDC 0.5 A (Inductive load (L/R = 7 ms))
Max Contact Voltage	250 VAC 125 VDC
Max Contact Current	AC: 1 A DC: 1 A
Maximum Switching Power	220 VA (Resistive load) 66 VA (Inductive load (cosφ = 0.4)) 24 W (Resistive load) 12 W (Inductive load (L/R = 7 ms))
Contact Method	Bifurcated crossbar
Contact Form	4PDT
Mounting Method	Socket
Coil Ratings	24 VDC 36.9 mA
Power Consumption	Approx. 0.9 W
Contact Resistance	100 mΩ max. (Voltage drop method with 5 VDC 1 A)
Operating Time	20 ms max. (With rated operating power applied, not including contact bounce)
Reset Time	20 ms max. (With rated operating power applied, not including contact bounce)
Maximum Operating Frequency	Mechanical: 18000 time/hour Rated load: 1800 time/hour
Ambient Temperature Operating	-25 to 70 ℃ (with no freezing or condensation)
Ambient Humidity Operating	5 to 85%
Weight	Approx. 35 g
