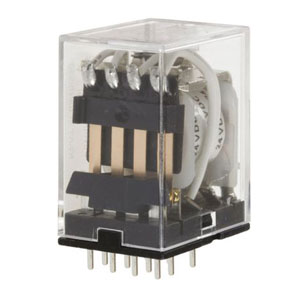

MY4-02 DC12: Omron 4PDT Relay in Chennai
The technical specifications for the Omron 4PDT Relay MY4-02 DC12:
- Degree of protection: Closed type (cover)
- Terminal structure: PCB terminal
- Coil Coil ratings: 12 VDC 75 mA
- Coil resistance: 160 Ω
- Contact form: 4PDT
- Contact method: Single
- Mounting method: Soldering
- Power consumption: Approx. 0.9 W
Omron 4PDT Relay MY4-02 DC12 Technical Specifications:
| Degree of protection | Closed type (cover) |
| Terminal structure | PCB terminal |
| Coil ratings | 12 VDC 75 mA |
| Coil resistance | 160 Ω |
| Operate voltage (Set voltage) | 80% max. |
| Release voltage (Reset voltage) | 10 % min. |
| Coil Maximum voltage | 110 % (23 ℃) |
| Power consumption | Approx. 0.9 W |
| Contact rated load | 220 VAC 3 A (Resistive load) 220 VAC 0.8 A (Inductive load (cosφ = 0.4)) 24 VDC 3 A (Resistive load) 24 VDC 1.5 A (Inductive load (L/R = 7 ms)) |
| Max. contact voltage | 250 VAC 125 VDC |
| Max. Contact Current | AC: 3 A DC: 3 A |
| Maximum switching power | 660 VA (Resistive load) 176 VA (Inductive load (cosφ = 0.4)) 72 W (Resistive load) 36 W (Inductive load (L/R = 7 ms)) |
| Contact method | Single |
| Contact form | 4PDT |
| Contact resistance | 50 mΩ max. (Voltage drop method with 5 VDC 1 A) |
| Contact material | Au clad + Ag alloy |
| Operating time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Reset time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Maximum operating frequency | Mechanical: 18000 time/hour Rated load: 1800 time/hour |
| Ambient temperature (Operating) | -55 to 70 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% |
| Mounting method | Soldering |
| Weight | Approx. 35 g |
Are you looking for The Omron 4PDT Relay MY4-02 DC12 is an excellent choice. It offers a closed-type cover, PCB terminals, Operating on 12 VDC, with a coil rating of 75 mA and a coil resistance of 160 Ω, it’s efficient with a power consumption of approximately 0.9 W. This relay has a 4PDT contact form and single contact method, designed for soldering mounting. For competitive prices on Omron Relays, IndMALL Automation in Chennai is the place to visit.
