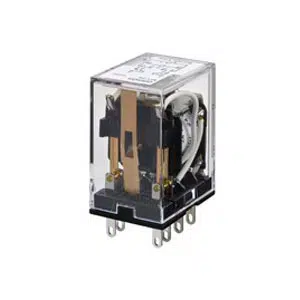

Omron MY2F DC24 Relay

The Omron MY2F DC24 Relay delivers reliable switching performance with a Closed type (cover) protective housing, and a Case-surface mounting for secure mounting. It provides a DPDT contact form with a Single contact method and uses Ag contacts to ensure long electrical life. Supporting a max contact current of AC: 5 A DC: 5 A loads. Built with a 650 Ξ© coil resistance, it ensures dependable response with an 80% max. operate voltage and 10 % min. release voltage. Supporting 250 VAC 125 VDC maximum contact voltage. Manufactured by Omron, listed under Omron Relay solutions, this model belongs to theMY Series.

Omron MY2F DC24 Relay
Datasheet
BrandOmron
ProductRelay
Model NumberMY2F DC24

Omron MY2F DC24 Relay - Technical Specifications

SpecificationValue
Degree Of ProtectionClosed type (cover)
Coil Resistance650 Ξ©
Operate Voltage Set Voltage80% max.
Release Voltage Reset Voltage10 % min.
Power Consumption Operate ReleaseApprox. 0.9 W
Contact Rated Load220 VAC 5 A (Resistive load) 220 VAC 2 A (Inductive load (cosφ = 0.4)) 24 VDC 5 A (Resistive load) 24 VDC 2 A (Inductive load (L/R = 7 ms))
Max Contact Voltage250 VAC 125 VDC
Max Contact CurrentAC: 5 A DC: 5 A
Maximum Switching Power1100 VA (Resistive load) 440 VA (Inductive load (cosφ = 0.4)) 120 W (Resistive load) 48 W (Inductive load (L/R = 7 ms))
Contact MethodSingle
Contact FormDPDT
Mounting MethodCase-surface mounting
Coil Ratings24 VDC 36.9 mA
Contact MaterialAg
No Of Poles2-Pole
Contact Resistance50 mΞ© max. (Voltage drop method with 5 VDC 1 A)
Operating Time20 ms max. (With rated operating power applied, not including contact bounce)
Reset Time20 ms max. (With rated operating power applied, not including contact bounce)
Maximum Operating FrequencyMechanical: 18000 time/hour Rated load: 1800 time/hour
Ambient Temperature Operating-55 to 70 ℃ (with no freezing or condensation)
Ambient Humidity Operating5 to 85%

Related Products

MY2IN 220/240VAC (S)MY2IN 220/240VAC (S)
MY2IN DC24 (S)MY2IN DC24 (S)

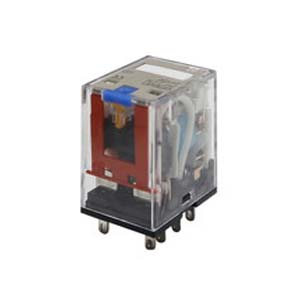

MY2IN-D2 DC24 (S)MY2IN-D2 DC24 (S)
