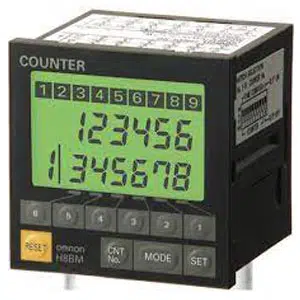

Omron H8BM-RBD DC24 Counter
The Omron H8BM-RBD DC24 Counter is a compact multi-maintenance time counter offering a 1-stage preset layout ideal for equipment cycle counting and long-duration timing. It integrates total counter, preset counter, and cumulative time counter functions, supporting timing up to 99999.9 hours or seconds. With nine internal counters/timers, selectable 30/500 Hz inputs, and an easy-to-read 6-digit LCD, it adapts to a wide range of industrial processes. Built-in short input eliminates external wiring for multi-stage operation, and the protective cover with rubber packing is provided as standard. Manufactured by Omron and listed under Omron Counter products, this model belongs to the H8BM Series.
| Brand | Omron |
| Product Type | Counters |
| Model Number | H8BM-RBD DC24 |
Omron H8BM-RBD DC24 Counter - Technical Specifications
| Specification | Value |
|---|---|
| Function | Total Counter, Preset Counter, Total Time Counter, Time Counter |
| Preset stages | 1 step |
| Rated supply voltage | 24 VDC (Ripple 20 % max.) |
| Operating voltage range | 85 to 110% of rated power supply voltage |
| Power consumption | at 26.4 VDC: Approx. 1.7 W |
| Count range | 0 to 999999 |
| Counter Max. counting speed | Count input 1 to 7: 30 Hz Count input 8, 9: 30 Hz/500 Hz (switching) (ON/OFF ratio 1:1) |
| Counter Minimum input signal width | 30 Hz: 16.7 ms 30 Hz/500 Hz: 16.7 ms/1 ms (selectable) |
| Counter Input mode | Increment (UP) |
| Counter Output modes | F |
| Counter One-shot output time | 20 ms |
| Counter Reset system | External and manual reset |
| Time counter Time ranges | Cumulative |
| Time counter ranges | 0.1 h to 99999.9 h/0.1 s to 99999.9 s (0.1h/0.1s selectable) |
| Time counter Reset system | External and manual reset |
| Input signal | Count, Reset, Short, Counter No. selection, I/O inhibit input |
| Input method | Voltage input |
| Voltage input | Hight level: 16 to 26.4 VDC Low level: 0 to 3 VDC (Input resistance Approx. 2.2 kΞ©) |
| Reset time External reset | 100 ms |
| Control output Solid-state output | Open collector output Residual voltage 2 V max.DC Leakage current 0.1 mA max. |
| Display method | 7-segment transmissive LCD |
| Display Digits | 6 digit |
| Memory backup methods | Method: EEP-ROM, Number of rewite: 100,000 operations min., Store data: 10 years min. |
| Ambient temperature (Operating) | -10 to 55 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85 % |
| Noise immunity | Between power terminals: Β±480 V Between input terminals: Β±480 V square-wave noise by noise simulator (pulse width: 100 ns/1 Β΅s, 1-ns rise) |
| Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 300 m/s2, 3 times each in 3 axes 6 directions Malfunction: 200 m/s2, 3 times each in 3 axes 6 directions |
| Degree of protection | Case front: IP54 Oil-proof type |
| External connection method | Screw terminal |
| Case color | Dark gray (Munsell 5Y3/1) |
| Weight | Approx. 250 g |
Give Us a Call for Omron Single Step Preset Counter, H8BM-RBD DC24 at the lowest pricing. In-depth Technical Analysis of H8BM-RBD DC24 includes H8BM-RBD DC24, Total Counter, Preset Counter, Total Time Counter, Time Counter, 24 VDC (Ripple 20 % max.), 85 to 110% of rated power supply voltage. It functionality Includes Count input 1 to 7: 30 Hz
Count input 8, 9: 30 Hz/500 Hz (switching)
(ON/OFF ratio 1:1), at 26.4 VDC: Approx. 1.7 W, 0 to 999999. Elevate Your Project with a Quote for your requirement of Omron Single Step Preset Counter. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
