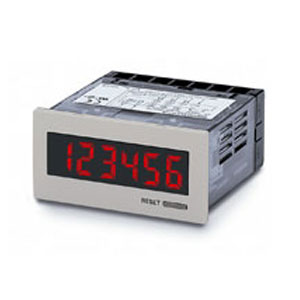

Omron H7HP-AB Counter
The Omron H7HP-AB Counter delivers reliable total and time counting with a 100 to 240 VAC supply, offering strong compatibility for industrial systems. It supports 30 Hz/5 kHz counting speeds and UP/DOWN input modes for flexible control. Featuring a 6-digit red backlit LCD, it ensures excellent readability even in dim environments. External/manual reset support and EEPROM memory backup enhance usability and data retention. Designed with IP66 oil-resistant protection and high EMC stability, it performs well in rigorous conditions. Manufactured by Omron and included in Omron Counter solutions, it forms part of the H7HP Series.
| Brand | Omron |
| Product Type | Counters |
| Model Number | H7HP-AB |
Omron H7HP-AB Counter - Technical Specifications
| Specification | Value |
|---|---|
| Function | Total Counter, Time Counter |
| Rated Supply Voltage | 100 to 240 VAC 50/60 Hz |
| Operating Voltage Range | 85 to 110% of the power supply voltage |
| Power Consumption | 6.5 VA max. |
| External Power Supply | 12 VDC 50 mA |
| Count range | -99999 to 999999 |
| Max Counting Speed | 30 Hz/5 kHz (switching) |
| Counter Input Mode | Increment/decrement (UP/DOWN (individual input)) |
| Reset System | External and manual reset |
| Time Counter Ranges | Cumulative |
| Counter Time Ranges | 0.1 h to 99999.9 h/1 s to 99 h 59 min 59 s |
| Time counter Set value read selector | Β±100 ppm (-10 to +55 β) |
| Time counter Reset system | External and manual reset |
| Input signal | Count 1/start, Count 2/gate, Reset, Key protect |
| Input method | No-voltage (NPN, contact input)/Voltage input (PNP) selectable |
| No-voltage input (No-contact input) | Short-circuit (ON) impedance: 1 kΞ© max. Residual voltage: 2 V max.DC Open circuit impedance: 100 kΞ© min. |
| No-voltage input (Contact input) | Short-circuit (ON) impedance: 1 kΞ© max. Short-circuit (ON) residual voltage: 2 VDC max. Open circuit impedance: 100 kΞ© min. |
| Voltage input | Hight level: 9 to 24 VDC (ON voltage) Low level: 5 VDC max. (OFF voltage) Short-circuit (ON) impedance: 1 kΞ© max. Open circuit impedance: 100 kΞ© min. |
| Display method | 7-segment backlit negative transmissive Red LCD |
| Display Digits | 6 digit |
| Memory backup methods Ambient humidity (Operating) Insulation resistance | Method: EEP-ROM, Number of rewite: 200,000 operations min., Store data: 20 years min. |
| Ambient temperature (Storage) | -10 to 55 β (with no icing) |
| Ambient temperature (Operating) | -25 to 65 β (with no icing) |
| Ambient humidity (Operating) | 35 to 85 % |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Dielectric withstand voltage | Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min Between power terminals and control input terminals: 2000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 3.0 kV Between current carrying terminals and exposed non-current carrying metal parts: 4.5 kV |
| Noise immunity | Between power terminals: Β±1.5 kV Between input terminals: Β±480 V square-wave noise by noise simulator (pulse width: 100 ns/1 Β΅s, 1-ns rise) |
| Static immunity | Display: Mulfunction: 8 kV, Destruction: 15 kV Dip switch: Mulfunction: 4 kV, Destruction: 8 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 294 m/s2, 3 times each in 3 axes each directions Malfunction: 196 m/s2, 3 times each in 3 axes each directions |
| Degree of protection | Case front: IP66 Oil-resistant type and NEMA Type 4 (indoors) |
| External connection method | Screw terminal |
| Case color | Gray smoke (Front: Light gray (Munsell 5Y7/1)) |
| Weight | Approx. 115 g |
