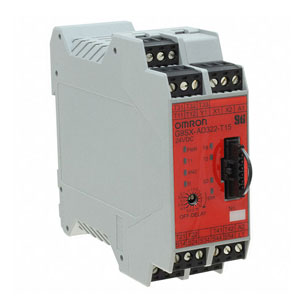

Omron G9SX-AD322-T15-RT Safety Relay Unit
The Omron G9SX-AD322-T15-RT Safety Relay Unit delivers dependable 15-second OFF-delay functionality with a 24 VDC power source operating within β15% to +10% voltage range. It ensures quick 50 ms operating time for safety input activation and maintains a 15 ms response time for reliable safety output. Designed to withstand harsh vibration and shock industrial conditions, it performs effectively between β10 and 55Β°C. Manufactured by Omron and categorized under Omron Relay, this dependable module is part of the G9SX Series.
| Brand | Omron |
| Product Type | Safety Relay Unit |
| Model Number | G9SX-AD322-T15-RT |
Omron G9SX-AD322-T15-RT Safety Relay Unit - Technical Specifications
| Specification | Value |
|---|---|
| OFF-delay time | 15 s |
| Rated voltage | 24 VDC |
| Operating voltage range | -15% to +10% of rated supply voltage |
| Power consumption | 4 W max |
| Operating time | 50 ms max. (Safety input: ON),100 ms max. (Logical AND connection input: ON) |
| Response time | 15 ms max. |
| Vibration resistance | Frequency: 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) |
| Shock resistance | Destruction 300 m/s2 Malfunction 100 m/s2 |
| Ambient operating temperature | β10 to 55Β°C (with no icing or condensation) |
| Ambient operating humidity | 25% to 85% |
| Terminal tightening torque | 0.5 NΒ·m |
| Weight | Approx. 200 g |
The G9SX-AD322-T15-RT stands out with its efficient 15-second OFF-delay function and a consistent rated voltage of 24 VDC, making it a dependable solution for applications requiring controlled shutdown sequences. Engineered by Omron for fail-safe operation, this safety relay unit ensures optimal performance with a maximum power consumption of 4 W and supports both single and logical AND input conditions, offering versatile integration into safety circuits.
The relayβs robust construction supports harsh operating environments with excellent vibration resistance (10 to 55 Hz, 0.75 mm double amplitude) and shock resistance up to 300 m/sΒ². It operates efficiently within a wide temperature range of β10 to 55Β°C and humidity range of 25% to 85%, ensuring stable performance in varied industrial conditions. The unit's response time of 15 ms max and operating time of 50 to 100 ms guarantee timely action in safety-critical scenarios, while the compact form factor (approx. 200 g) eases panel design and installation.
Trusted across global factories, the Omron G9SX-AD322-T15-RT is ideal for machine builders and OEMs seeking advanced safety logic with reliable delay control.
