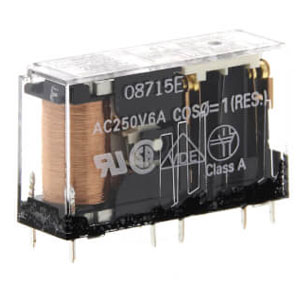

Omron G7SA-5A1B DC12 Relay
The Omron G7SA-5A1B DC12 Relay offers dependable switching with a Flux tight housing, PCB terminal structure, and a 12 VDC 41.7 mA coil rating for stable operation. It features a 5PST-NO/SPST-NC contact form with Au platingοΌAg alloy contacts. The relay supports a 75 % max operate voltage, 10 % min. release voltage, and a 110 % maximum coil voltage rating. With Approx. 500 mW power consumption and a 250 VAC; 125 VDC maximum contact voltage, it ensures durable and consistent performance. Manufactured by Omron and listed under Omron Relay solutions, this model belongs to the G7SA Series.
| Brand | Omron |
| Product Type | Relay |
| Model Number | G7SA-5A1B DC12 |
Omron G7SA-5A1B DC12 Relay - Technical Specifications
| Specification | Value |
|---|---|
| Degree of protection | Flux tight |
| Terminal structure | PCB terminal |
| Coil ratings | 12 VDC 41.7 mA |
| Coil resistance | 288 Ξ© |
| Operate voltage (Set voltage) | 75 % max |
| Release voltage (Reset voltage) | 10 % min. |
| Maximum voltage | 110 % |
| Power consumption | Approx. 500 mW |
| Max. contact voltage | 250 VAC; 125 VDC |
| Contact form | 5PST-NO/SPST-NC |
| Contact material | Au platingοΌAg alloy |
| Contact resistance | 100 mΞ© max. (Voltage drop method with 5 VDC 1 A) |
| Operating time | 20 ms max. (With rated operating power applied, 23 β, not including contact bounce) |
| Reset time | 20 ms max. (With rated operating power applied, 23 β, not including contact bounce) |
| Ambient temperature (Operating) | -40 to 85 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85 % |
| Mounting method | Socket, Soldering |
| Weight | Approx. 25 g |
The Omron G7SA-5A1B DC12 offers exceptional reliability and precision for industrial automation safety systems. With a flux-tight construction, the relay is designed to protect circuits and machinery under demanding conditions. Featuring a 12 VDC coil rating at 41.7 mA, it delivers efficient operation with a power consumption of approximately 500 mW.
This relay supports a 5PST-NO/SPST-NC contact configuration made from high-quality Au plating + Ag alloy, ensuring superior conductivity and durability. With a maximum contact voltage of 250 VAC and 125 VDC, the G7SA-5A1B DC12 can handle a wide range of industrial loads. The relay ensures fast switching with an operating time of 20 ms max and a reset time of 20 ms max, making it ideal for systems that require rapid response times.
Built to withstand harsh environments, it operates within an ambient temperature range of -40 to 85 β and humidity levels of 5 to 85%, ensuring reliability in a wide variety of industrial settings. Designed for socket and soldering mounting, this unit weighs approximately 25 g. For more detailed specifications, visit the official Omron G7SA-5A1B DC12 product page and discover why itβs a trusted solution for industrial automation needs.
