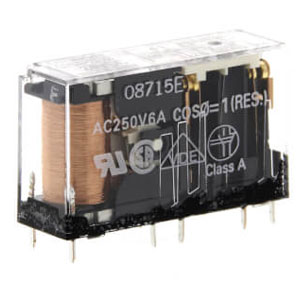

Omron G7SA-4A2B DC24 Relay
The Omron G7SA-4A2B DC24 Relay offers dependable switching with a Flux tight housing, PCB terminal structure, and a 24 VDC 20.8 mA coil rating for stable operation. It features a 4PST-NO/DPST-NC contact form with Au platingοΌAg alloy contacts. The relay supports a 75 % max operate voltage, 10 % min. release voltage, and a 110 % maximum coil voltage rating. With Approx. 500 mW power consumption and a 250 VAC; 125 VDC maximum contact voltage, it ensures durable and consistent performance. Manufactured by Omron and listed under Omron Relay solutions, this model belongs to the G7SA Series.
| Brand | Omron |
| Product Type | Relay |
| Model Number | G7SA-4A2B DC24 |
Omron G7SA-4A2B DC24 Relay - Technical Specifications
| Specification | Value |
|---|---|
| Degree of protection | Flux tight |
| Terminal structure | PCB terminal |
| Coil ratings | 24 VDC 20.8 mA |
| Coil resistance | 1152 Ξ© |
| Operate voltage (Set voltage) | 75 % max |
| Release voltage (Reset voltage) | 10 % min. |
| Maximum voltage | 110 % |
| Power consumption | Approx. 500 mW |
| Max. contact voltage | 250 VAC; 125 VDC |
| Contact form | 4PST-NO/DPST-NC |
| Contact material | Au platingοΌAg alloy |
| Contact resistance | 100 mΞ© max. (Voltage drop method with 5 VDC 1 A) |
| Operating time | 20 ms max. (With rated operating power applied, 23 β, not including contact bounce) |
| Reset time | 20 ms max. (With rated operating power applied, 23 β, not including contact bounce) |
| Ambient temperature (Operating) | -40 to 85 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85 % |
| Mounting method | Socket, Soldering |
| Weight | Approx. 25 g |
The Omron G7SA-4A2B DC24 offers exceptional reliability for safety applications, featuring a flux-tight construction and durable PCB terminal connections for secure installation. With a coil rating of 24 VDC at 20.8 mA and a coil resistance of 1152 Ξ©, it provides an efficient power consumption of approximately 500 mW. The relay supports 250 VAC and 125 VDC loads, with a 4PST-NO/DPST-NC configuration made from Au plating + Ag alloy for excellent conductivity and durability. This ensures superior performance with 100 mΞ© max contact resistance (measured via the voltage drop method with 5 VDC, 1 A).
The operating time is 20 ms max, ensuring rapid switching operations, while the reset time is also 20 ms max, making it perfect for fast-paced industrial processes. It operates effectively within a wide temperature range from -40 to 85 β and can withstand humidity levels of 5 to 85%, ensuring optimal functionality even in challenging environments. With a weight of approximately 25 g, it is compact yet robust. For detailed specifications and more information, visit the official Omron G7SA-4A2B DC24 product page. Choose IndMALL for the best pricing and expert support in India.
