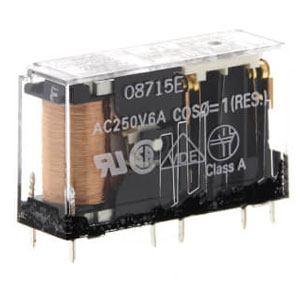

Omron G7SA-4A2B DC12 Relay
The Omron G7SA-4A2B DC12 Relay offers dependable switching with a Flux tight housing, PCB terminal structure, and a 12 VDC 41.7 mA coil rating for stable operation. It features a 4PST-NO/DPST-NC contact form with Au platingοΌAg alloy contacts. The relay supports a 75 % max operate voltage, 10 % min. release voltage, and a 110 % maximum coil voltage rating. With Approx. 500 mW power consumption and a 250 VAC; 125 VDC maximum contact voltage, it ensures durable and consistent performance. Manufactured by Omron and listed under Omron Relay solutions, this model belongs to the G7SA Series.
| Brand | Omron |
| Product Type | Relay |
| Model Number | G7SA-4A2B DC12 |
Omron G7SA-4A2B DC12 Relay - Technical Specifications
| Specification | Value |
|---|---|
| Degree of protection | Flux tight |
| Terminal structure | PCB terminal |
| Coil ratings | 12 VDC 41.7 mA |
| Coil resistance | 288 Ξ© |
| Operate voltage (Set voltage) | 75 % max |
| Release voltage (Reset voltage) | 10 % min. |
| Maximum voltage | 110 % |
| Power consumption | Approx. 500 mW |
| Max. contact voltage | 250 VAC; 125 VDC |
| Contact form | 4PST-NO/DPST-NC |
| Contact material | Au platingοΌAg alloy |
| Contact resistance | 100 mΞ© max. (Voltage drop method with 5 VDC 1 A) |
| Operating time | 20 ms max. (With rated operating power applied, 23 β, not including contact bounce) |
| Reset time | 20 ms max. (With rated operating power applied, 23 β, not including contact bounce) |
| Ambient temperature (Operating) | -40 to 85 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85 % |
| Mounting method | Socket, Soldering |
| Weight | Approx. 25 g |
With its flux-tight construction and durable PCB terminal design, the G7SA-4A2B DC12 provides engineers with a dependable safety control component for critical installations. The relay features a coil rating of 12 VDC at 41.7 mA and a coil resistance of 288 Ξ©, consuming approximately 500 mW during operation. It supports both 4PST-NO and DPST-NC contact configurations, enabling complex control logic in compact safety circuits.
Designed with Au platingοΌAg alloy contacts, this Omron safety relay is built for durability and conductivity, handling voltages up to 250 VAC and 125 VDC. The contact resistance of 100 mΞ© max and swift 20 ms operate/reset time make it highly responsive in emergency stop and interlock systems. Operating reliably from -40 to 85 β with humidity tolerance between 5% to 85%, the relay is suitable for a wide range of environmental conditions, including harsh industrial settings.
This model also supports socket or soldering installation, making it flexible for various panel designs. With 110% max voltage tolerance and a lightweight 25 g profile, itβs optimized for modern control applications. For complete technical documentation and support, visit the official Omron G7SA-4A2B DC12 product page. Rely on IndMALL Automation for the most competitive pricing, trusted delivery, and genuine Omron products across India.
