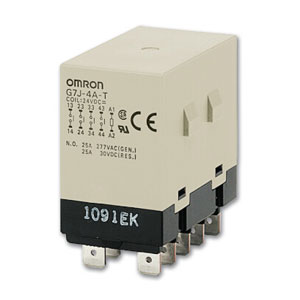

Omron G7J-4A-P DC24 Relay
The Omron G7J-4A-P DC24 Relay offers dependable switching with a Closed type (cover) housing, PCB terminal structure, and a 24 VDC 83 mA coil rating for stable operation. It features a 4PST-NO contact form with Ag alloy contacts and a Double break mechanism designed for high-reliability control circuits. The relay supports a 75 % max operate voltage, 10 % min release voltage, and a 110 % maximum coil voltage rating. With Approx. 2 W power consumption and a 250 VAC; 125 VDC maximum contact voltage, it ensures durable and consistent performance. Manufactured by Omron and listed under Omron Relay solutions, this model belongs to the G7J Series..
| Brand | Omron |
| Product | Relay |
| Model Number | G7J-4A-P DC24 |
Omron G7J-4A-P DC24 Relay - Technical Specifications
| Specification | Value |
|---|---|
| Terminal Structure | PCB terminal |
| Degree Of Protection | Closed type (cover) |
| Coil Resistance | 288 Ω |
| Operate Voltage Set Voltage | 75 % max |
| Release Voltage Reset Voltage | 10 % min |
| Max Contact Voltage | 250 VAC; 125 VDC |
| Contact Method | Double break |
| Contact Form | 4PST-NO |
| Mounting Method | Soldering |
| Coil Ratings | 24 VDC 83 mA |
| Contact Material | Ag alloy |
| Power Consumption | Approx. 2 W |
| Maximum Voltage | 110 % |
| Contact Resistance | 100 mΩ max. (Voltage drop method with 5 VDC 1 A) |
| Operating Time | 50 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) |
| Reset Time | 50 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) |
| Ambient Temperature Operating | -25 to 60 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 5 to 85 % |
| Weight | Approx. 140 g |
The G7J-4A-P DC24 offers robust design and superior switching reliability, equipped with a 4PST-NO double break contact mechanism that ensures dependable performance in safety-critical environments. Its coil rating of 24 VDC 83 mA and coil resistance of 288 Ω allow for efficient energy usage, with a total power consumption of approximately 2 W. Built with Ag alloy contacts, the relay is optimized to handle high load voltages up to 250 VAC and 125 VDC, while maintaining a low contact resistance of 100 mΩ max.
Engineered with a closed-type protective cover and PCB terminal structure, the G7J-4A-P DC24 is perfectly suited for compact installations where board-level integration is critical. It delivers quick responsiveness with operating and reset times of 50 ms max, and performs reliably in harsh operating conditions ranging from -25 to 60°C and 5% to 85% humidity. Its soldering mount design and compact 140 g weight make it easy to assemble within densely packed control panels.
With high switching capacity, durable materials, and trusted Omron engineering, the G7J-4A-P DC24 is a preferred choice for engineers designing advanced automation systems.
View full product specifications on Omron’s official product page.
