Omron G3R-IAZR1SN AC100-240 Solid-state Relay

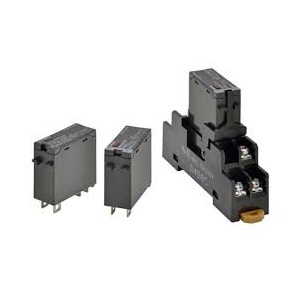

The Omron G3R-IAZR1SN AC100-240 Solid-state Relay (SSR) is a high-reliability output module designed for stable control of standard AC loads. It features photocoupler isolation, an equipped operation indicator, and a high-speed response suitable for precision switching. With a 100–240 VAC output rating and 4–32 VDC / 0.1–100 mA input, this SSR ensures noise-free operation and long service life. The plug-in terminal format matches the shape of G2R-1-S relays, reducing wiring by 60% when paired with P2RF-05-PU sockets. Manufactured by Omron under the Omron Solid State Relay family, this model belongs to the G3R Series.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3R-IAZR1SN AC100-240 |
Omron G3R-IAZR1SN AC100-240 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Isolation Method | Photocoupler |
| Mounting | Socket |
| Operating Indicator | Equipped |
| Rated Voltage | 100 to 240 VAC |
| Rated Load Voltage | 4 to 32 VDC |
| Terminal Structure | Plug-in terminal |
| Load Current | 0.1 to 100 mA |
| Operate Time | 20 ms max. |
| Release Time | 20 ms max. |
| Output On Voltage Drop | 1.6 V max. |
| Leakage Current | 5 µA max. |
| Insulation Resistance | Between input and output: 100 MΩ min. |
| Dielectric Strength | Between input and output: 4000 VAC 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock Resistance | 1000 m/s2 |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 18 g |
The Omron G3R-IAZR1SN AC100-240 is a compact I/O solid state relay ideal for signal-level switching in industrial control systems. It features a wide input voltage range of 100 to 240 VAC and a DC output range of 4 to 32 VDC, supporting load currents from 0.1 to 100 mA.
This relay uses a photocoupler isolation method to ensure safe signal transmission between input and output. The plug-in terminal design allows for easy socket-based installation, while the integrated operating indicator provides clear visual feedback. With a fast operate and release time of 20 ms max, it supports real-time I/O response in panel systems.
Built to withstand harsh industrial conditions, the G3R-IAZR1SN offers excellent shock and vibration resistance, leakage current as low as 5 µA, and reliable operation across temperatures from −30°C to 80°C.
