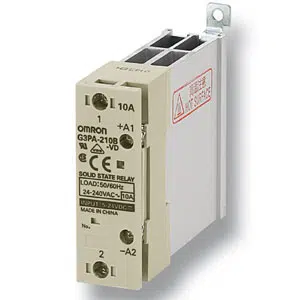

Omron G3PA-220B-VD-X Solid-state Relay
Omron G3PA-220B-VD-X is a single-phase, 2-element solid state relay specified with photocoupler isolation and DIN track or screw mounting. It uses detachable screwless clamp terminals and includes a yellow operating indicator together with an equipped zero-cross function. Rated input voltage is 5 to 24 VDC, while the supplied data lists a 24 to 240 VDC input operating range. Its rated output load voltage is 24 to 240 VAC and the output load voltage range is 19 to 264 VAC. Output load current is listed as 25 A at 25°C and 0.1 to 10 A at 40°C. The G3PA-220B-VD-X belongs to the G3PA series within the SSR category from Omron switching components.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3PA-220B-VD-X |
Omron G3PA-220B-VD-X Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Single-phase |
| Isolation Method | Photocoupler |
| Mounting | DIN track mounting,Screw mounting |
| Operating Indicator | Equipped (Yellow) |
| Terminal Structure | Screwless clamp terminals (detachable) |
| Product Classification | For Single-phase Heater |
| Number Of Elements | 2 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 5 to 24 VDC |
| Input Current | 7 mA max. (at 12 VDC) |
| Input Operate Voltage | 4 VDC max. |
| Input Release Voltage | 1 VDC min. |
| Output Rated Load Voltage | 24 to 240 VAC |
| Output Load Voltage Range | 19 to 264 VAC |
| Output Minimum Load Current | 0.1 to 10 A at 40°C |
| Output Load Current | 25 A (at 25 ℃) |
| Output Inrush Current Resistivity | 150 A (60 Hz 1 cycle) |
| Operate Time | 1/2 cycle of load power source + 1 ms max. |
| Release Time | 1/2 cycle of load power source + 1 ms max. |
| Output On Voltage Drop | Main circuit: 1.6 V max. (RMS) Alarm output: 1.8 V max. |
| Leakage Current | Main circuit: 10 mA max. (at 200 VAC) Alarm output: 20 mA max. |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 4000 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock Resistance | 294 m/s 2 (DIN Track mounting) |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 260 g |
The Omron G3PA-220B-VD-X Solid State Relay is a single-phase, 2-element model with photocoupler isolation, DIN track or screw mounting, and detachable screwless clamp terminals. Rated input voltage is 5 to 24 VDC, while the source lists the input operating range as 24 to 240 VDC. Input current is 7 mA max. at 12 VDC, input operate voltage is 4 VDC max., and input release voltage is 1 VDC min. The rated output load voltage is 24 to 240 VAC with a 19 to 264 VAC output load voltage range. Output load current is specified as 25 A at 25°C and 0.1 to 10 A at 40°C. The output inrush current resistivity is 150 A for one 60 Hz cycle.
The relay is equipped with a yellow operating indicator and zero-cross function. Operate time and release time are each one-half cycle of the load power source plus 1 ms max. Main-circuit output ON voltage drop is 1.6 V max. RMS, and main-circuit leakage current is 10 mA max. at 200 VAC. Insulation resistance is 100 MΩ min. at 500 VDC, while dielectric strength is 4000 VAC at 50/60 Hz for 1 minute. Ambient operating temperature is -30 to 80°C without freezing or condensation. For the corresponding non-X model with the same listed primary specifications, see the G3PA-220B-VD.
