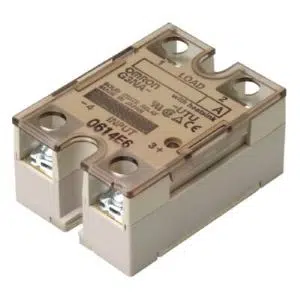

Omron G3NA-240B-UTU DC5-24 Solid-state Relay
The Omron G3NA-240B-UTU DC5-24 Solid-state Relay (SSR) delivers 5 to 24 VDC input, 24 to 240 VAC output, and With heat sink (at 40 β): 0.1 to 20 A Without heat sink (at 40 β): 0.1 to 4 A load performance reliably. This relay features a Single-phase, 3-element structure with Phototriac isolation, an Equipped zero-cross function for noise-free switching, and an Equipped operating indicator for real-time status monitoring. Its Screw terminal socket simplifies installation, while 220 A (60 Hz 1 cycle) inrush current resistivity, it ensures stable operation across its 4 to 32 VDC input range. Manufactured by Omron and listed under Omron Solid State Relay solutions, this model belongs to the G3NA Series.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3NA-240B-UTU DC5-24 |
Omron G3NA-240B-UTU DC5-24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Single-phase |
| Isolation Method | Phototriac |
| Mounting | Screw mounting |
| Operating Indicator | Equipped |
| Terminal Structure | Screw terminal |
| Product Classification | For Single-phase Heater |
| Number Of Elements | 3 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 5 to 24 VDC |
| Input Current | 7 mA max. |
| Input Operate Voltage | 4 VDC max. |
| Input Release Voltage | 1 VDC min. |
| Output Rated Load Voltage | 24 to 240 VAC |
| Output Load Voltage Range | 19 to 264 VAC |
| Output Minimum Load Current | 0.2 VDC |
| Output Load Current | With heat sink (at 40 β): 0.1 to 20 A Without heat sink (at 40 β): 0.1 to 4 A |
| Output Inrush Current Resistivity | 220 A (60 Hz 1 cycle) |
| Operate Time | 1/2 cycle of load power source + 1 ms max. |
| Release Time | 1/2 cycle of load power source + 1 ms max. |
| Output On Voltage Drop | 1.6 V max. (RMS) |
| Leakage Current | 5 mA max. (at 100 VAC) 10 mA max. (at 200 VAC) |
| Insulation Resistance | 100 MΞ© min. (at 500 VDC) |
| Dielectric Strength | 2500 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock Resistance | 1000 m/s 2 (DIN Track mounting) |
| Ambient Temperature Operating | -30 to 80 β (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 β (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 60g |
