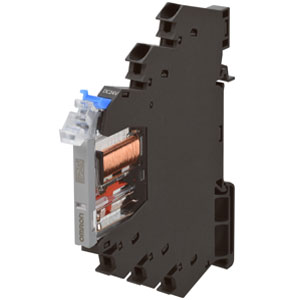

Omron G2RV-SR500 AC/DC24 Relay
The Omron G2R-2-SNI DC24 (S) Relay delivers reliable switching with a Closed type (cover), Plug-in terminal structure, and a 24 VDC 25.6 mA coil rated for stable operation. It features a DPDT contact form with a 1113 ฮฉ maximum resistance, ensuring low-loss conduction. The relay supports a 70% max. operate voltage and 15% min. release voltage, offering consistent electrical response. Designed for panel integration, its Socket mounting enhances installation convenience. Manufactured by Omron and listed under Omron Relay solutions, this model is listed under the Omron G2R Series.
| Brand | Omron |
| Product Type | Relay |
| Model Number | G2RV-SR500 AC/DC24 |
Omron G2RV-SR500 AC/DC24 Relay - Technical Specifications
| Specification | Value |
|---|---|
| Terminal structure | Wire connection method: Push-In Plus Terminal |
| Operate voltage (Set voltage) | 80 % max. |
| Release voltage (Reset voltage) | 10 % min. |
| Contact rated load | 250 VAC 6 A (Resistive load (cosฯ = 1)) 250 VAC 2.5 A (Inductive load (cosฯ = 0.4)) 30 VDC 6 A (Resistive load (cosฯ = 1)) 30 VDC 2 A (Inductive load (L/R = 7 ms)) |
| Max. contact voltage | 440 VAC 125 VDC |
| Max. Contact Current | AC: 6 A DC: 6 A |
| Maximum switching power | 1500 VA (Resistive load (cosฯ = 1)) 500 VA (Inductive load (cosฯ = 0.4)) 180 W (Resistive load (cosฯ = 1)) 60 W (Inductive load (L/R = 7 ms)) |
| Contact form | SPDT |
| Contact resistance | 100 mฮฉ max. (at 23 โ) |
| Operating time | 20 ms max. (23 โ) |
| Reset time | 40 ms max. (23 โ) |
| Maximum operating frequency | Mechanical: 18000 time/hour Electrical: 1800 time/hour |
| Ambient temperature (Operating) | -40 to 55 โ (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% |
| Mounting method | DIN track mounting |
| Operating indicator | LED/Mechanical indicator |
| Coil ratings | 24 VAC 50 Hz 12.5 mA 24 VAC 60 Hz 12.6 mA 24 VDC 12.6 mA |
| Coil Maximum voltage | 110 % |
| Contact material | Ag alloy |
| Power consumption | Approx. 300 mW Approx. 0.5 VA |
| Insulation resistance | 1000 Mฮฉ min. (at 500 VDC) |
| Weight | Approx. 30 g |
