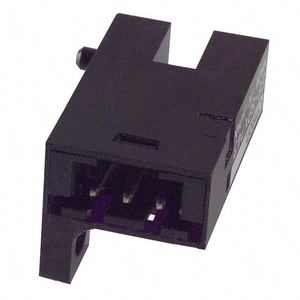

Omron EE-SPX743 Photomicrosensor
The Omron EE-SPX743 Photomicrosensor offers Throughbeam with slot, 3.6 mm Sensing distance, NPN Output, Special connector, 5 to 24 VDC Power supply voltage, Dark-ON mode. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron EE Series.
| Brand | Omron |
| Product Type | Photomicrosensor |
| Model Number | EE-SPX743 |
Omron EE-SPX743 Photomicrosensor β Technical Specifications
| Specification | Value |
|---|---|
| Luminous method | Modulated |
| Sensing method | Throughbeam with slot |
| Sensing distance | 3.6 mm |
| Control output (Output type) | NPN |
| Control output (Residual voltage) | at 50 mA load current: 1.0 V max. at 10 mA load current: 0.4 V max. |
| Operation mode | Dark-ON |
| Connection method | Special connector |
| Current consumption | Average value: 15 mA max. Peak: 50 mA max. |
| Control output (Load current) | 50 mA max. |
| Indicator | Light indicator (red) |
| Power supply voltage | 5 to 24 VDC |
| Material | Case: Polycarbonate (PC) Holder: Polycarbonate (PC) |
| Degree of protection | IP50 |
| Ambient temperature (Operating) | -10 to 55 β |
| Ambient temperature (Storage) | -25 to 65 β |
| Ambient humidity (Operating) | 5 to 85 % |
| Ambient humidity (Storage) | 5 to 95 % |
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
The Omron EE-SPX743 is a compact grooved-type photomicrosensor designed for reliable object detection using a 3.6 mm slot-width through-beam configuration. It uses modulated infrared light to enhance detection accuracy and minimize interference from ambient light sources.
This sensor operates in Dark-ON mode and features an NPN voltage output with low residual voltageβjust 1.0 V max. at 50 mA. It includes a red LED light indicator for quick visual status checks. With a current consumption of 15 mA (average) and peak up to 50 mA, it supports efficient operation in compact systems.
Built with a rugged polycarbonate body and connector-type design, the EE-SPX743 is rated IP50 and operates between -10Β°C to 55Β°C. Itβs suitable for tight industrial environments, such as precision positioning, part presence detection, and small-scale automation tasks.
