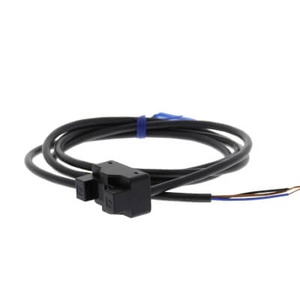

Omron EE-SPX613 1M Photomicrosensor
The Omron EE-SPX613 1M Photomicrosensor offers Through-beam with slot, 13 mm Sensing distance, NPN Output, Pre-wired 1 M Cable, GaAs infrared LED (940 nm), 12 to 24 VDC Power supply voltage, Light-ON/Dark-ON mode. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron EE Series.
| Brand | Omron |
| Product Type | Photomicro Sensor |
| Model Number | EE-SPX613 1M |
Omron EE-SPX613 1M Photomicrosensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Through-beam with slot |
| Sensing Distance | 13 mm |
| Standard Sensing Object | Liquids in pipes |
| Light Source | GaAs infrared LED (940 nm) |
| Power Supply Voltage | 12 to 24 VDC |
| Output configuration | NPN |
| Connection Method | Pre-wired 1 M Cable |
| Current Consumption | Average value: 30 mA max. Peak: 80 mA max. |
| Operation Mode | Light-ON/Dark-ON |
| Indicators | Light indicator GaP (Red LED: Peak wavelength of 700 nm) |
| Ambient Temperature Range | Operating: -10 to 55 β (with no freezing or condensation) Storage: -25 to 65 β (with no freezing or condensation) |
| Ambient Humidity Range | Operating: 5 to 85 % (with no condensation) Storage: 5 to 95 % (with no condensation) |
| Vibration Resistance | Destruction: 10 to 500 Hz, 1.0 mm single amplitude or acceleration 150 m/s2, 3 times each in X, Y, and Z directions (11 min/sweeps) |
| Shock Resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
| Degree of Protection | IP50 |
| Material | Case: Polycarbonate (PC) Cover: Polycarbonate (PC) |
| Weight | Package: Approx. 55 g |
The Omron Photomicro Sensor EE-SPX613 1M is engineered for contamination-free liquid level detection in transparent or semi-transparent tubes. Its compact through-beam design features a 13 mm slot that ensures non-contact, high-accuracy sensing. With selectable Light-ON or Dark-ON mode and NPN output, it integrates seamlessly into fluid-monitoring systems in sectors such as healthcare, lab automation, and semiconductor manufacturing.
Powered by a GaAs infrared LED (940 nm), the sensor offers efficient operation between 12β24 VDC with low current consumption. It includes a red LED indicator (700 nm) for alignment checks and operates reliably between -10Β°C to 55Β°C. The polycarbonate build and IP50 protection ensure safe installation in indoor, dust-protected environments.
Engineers rely on the EE-SPX613 1M for vibration-resistant, shock-tolerant sensing in compact assemblies. Its quick installation via a 1-meter pre-wired cable and non-intrusive design make it a preferred choice in fluid transport applications.
