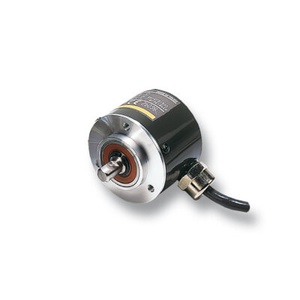

Omron E6C3-CWZ3XH 3600P/R 1M Rotary Encoder
The Omron E6C3-CWZ3XH 3600P/R 1M Rotary Encoder is an Incremental Shaft model offering a 3600 P/R resolution for precise position detection in automation systems. It provides a Line driver output configuration, designed as a Pre-wired model, 1 m Cable length to support easy installation and reliable signal transmission. Built with a 50 mm dia housing, it operates on 5 to 12 VDC power supply voltage, ensuring stable and accurate output during continuous operation. Engineered for high performance and durability, itβs ideal for applications requiring dependable rotational feedback and compact design. Manufactured by Omron, part of the Omron Rotary Encoders family, available under the Omron E6C3-C Series.
| Brand | Omron |
| Product Type | Rotary Encoders |
| Model Number | E6C3-CWZ3XH 3600P/R 1M |
Omron E6C3-CWZ3XH 3600P/R 1M Rotary Encoder - Technical Specifications
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 3600 P/R |
| Control output | Line driver output |
| Connection method | Pre-wired model, 1 m Cable length |
| Diameter | 50 mm dia |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Inrush current | Approx. 9 A (0.1 ms) |
| Ambient temperature | Operating: -10 to 70 β (with no icing); Storage: -25 to 85 β (with no icing) |
| Degree of protection | IEC: IP65; Company standard: Oil resistance |
| Material | Case: Aluminum, Main Unit: Aluminum, Shaft: SUS303 |
| Weight | Package: Approx. 300 g |
| Accessories | Instruction manual |
The Omron E6C3-CWZ3XH 3600P/R 1M is part of the E6C3 Rotary Encoder lineup and is frequently evaluated alongside other Omron rotary encoders during machine design and maintenance planning. Engineers often compare related models such as Omron E6C3-CWZ5GH 3600P/R 1M (Incremental Shaft, 3600 P/R resolution, Complementary output, 1 m Cable length), Omron E6C3-AB5C 6P/R 1M (Absolute Shaft, 6 P/R resolution, BCD code, NPN output, 1 m Cable length), and Omron E6C3-AN5B 32P/R 1M (Absolute Shaft, 32 P/R resolution, Binary code, PNP output, 1 m Cable length) when selecting an encoder for conveyor positioning, shaft feedback, indexing systems, rotary tracking, or general motion monitoring tasks. Considering differences in shaft type, resolution, output coding, drive stage, signal format, wiring, and cable length helps match each encoder to PLC high-speed inputs and mechanical coupling points. These compatible Omron encoder variants also help maintenance teams maintain consistent wiring patterns, predictable pulse generation, connector alignment, and uniform installation layouts across different stations. The E6C3-CWZ3XH 3600P/R 1M fits naturally into automation systems that require a stable, durable, and accurate feedback device, and is well-suited for industrial environments where a reliable Omron Encoders ensures dependable long-term operation.
