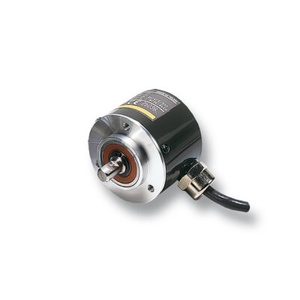

E6C3-AB5C 6P/R 1M: Omron Industrial Grade Encoder

Technical Specifications of Omron Industrial Grade Encoder E6C3-AB5C 6P/R 1M:

SpecValue
Encoding MethodAbsolute Shaft model
Resolution6 P/R
Output CodeBCD
Control OutputNPN open collector
Connection MethodPre-wired models (Cable length: 1 m)

Omron Industrial Grade Encoder E6C3-AB5C 6P/R 1M Technical Specifications:

SpecificationValue
Encoding MethodAbsolute Shaft model
Resolution6 P/R
Output codeBCD
Control outputNPN open collector
Connection methodPre-wired models (Cable length: 1 m)
Diameter50 mm dia.
Power supply voltage12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max.
Current consumption70 mA max.
Inrush currentApprox. 6 A (0.8 ms)
LogicNegative logic (high = 0, low = 1)
Ambient temperatureOperating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing)
Degree of protectionIEC: IP65
MaterialCase: Aluminum
WeightPackage: Approx. 300 g
AccessoriesInstruction manual
Give Us a Call for Omron Industrial Grade Encoder, E6C3-AB5C 6P/R 1M at the lowest pricing. In-depth Technical Analysis of E6C3-AB5C 6P/R 1M includes Absolute Shaft model, 6 P/R, BCD & NPN open collector. It functionality Includes 50 mm dia., 70 mA max. & Negative logic (high = 0, low = 1). Elevate Your Project with a Quote for your requirement of Omron Industrial Grade Encoder. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
