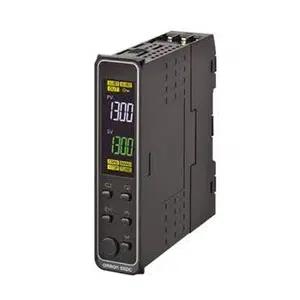

Omron E5DC-CX2ABM-000 Digital Temperature Controller
The Omron E5DC-CX2ABM-000 Temperature Controller is a compact and precise Digital Temperature Controller designed for stable, fast-response industrial temperature regulation. Its slim 22.5 mm Wide, and DIN Track-mounting Type supports a versatile 1 point input compatible with Thermocouple, Platinum resistance thermometer, and Infrared Thermosensor ranges. Operating on 100 to 240 VAC (50/60 Hz) with an allowable range of 85 to 110% of the power supply voltage, it provides ON/OFF or 2-PID control with auto-tuning for highly stable temperature management. The controller includes a Linear current output, 2 point auxiliary output, Digital setting using front panel keys (with protection function), and 11-segment digital display for clear monitoring. Built with a Black (N1.5) case and Push-In Plus Terminal Block wiring, it ensures easy integration into control panels. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5DC Series.
Omron E5DC-CX2ABM-000 Temperature Controller - Technical Specifications
Specification
Value
Shape
22.5 mm wide
Fixed/Programmable
Fixed
Power supply voltage
100 to 240 VAC (50/60 Hz)
Operating voltage range/ Allowable voltage variable range
85 to 110% of the power supply voltage
Power consumption
4.9 VA max. (at 100 to 240 VAC)
Control method
ON/OFF or 2-PID control with auto-tuning
Number of input points
1 point
Input Type/Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII
Platinum resistance thermometer: Pt100, JPt100
Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃
Control output 1
Linear current output
Control output 2
None
Number of total auxiliary output
2 point
Setting method
Digital setting using front panel keys (with protection function)
Indication method
11-segment digital display and individual indicators
Insulation resistance
Between charged terminals and exposed uncharged parts: 20 MΩ min. (500 VDC)
Between current-carrying terminals: 20 MΩ min. (500 VDC)
Between non-continuous contacts: 20 MΩ min. (500 VDC)
Dielectric strength
3,000 VAC 50/60 Hz 1 min (Between current-carrying terminals of different polarity)
Vibration resistance
Destruction: 10 to 55 Hz, 20 m/s2 for 2 h each in X, Y, and Z directions
Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions
Shock resistance
Destruction: 300 m/s2, 3 times each in X, Y, and Z directions
Malfunction: 100 m/s2, 3 times each in X, Y, and Z directions
Ambient temperature (Operating)
-10 to 55 ℃ (with no freezing or condensation)
For 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation)
Ambient temperature (Storage)
-25 to 65 ℃ (with no freezing or condensation)
Ambient humidity (Operating)
25 to 85 %
Degree of protection
Main unit: IP20, Terminal unit: IP00
Case color
Black (N1.5)
Terminal type
Push-In Plus Terminal Block
Weight
Controller: Approx. 210 g, Adapter: Approx. 4 g × 2
The Omron E5DC-CX2ABM-000 is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5DC-RX2ABM-800 (48 × 48 mm, ON/OFF control or 2-PID control (with auto-tuning), 100 to 240 VAC, Relay output), Omron E5DC-QX2DUM-800 (48 × 48 mm, ON/OFF control or 2-PID control, 24 VAC, 50/60 Hz; 24 VDC, Voltage output), and Omron E5DC-RX2AUM-017 (22.5 mm wide, ON/OFF or 2-PID control, 100 to 240 VAC, 50/60 Hz, Relay output, 11-segment digital displays) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal limits. Reviewing shape,.
