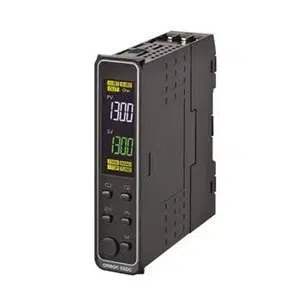

Omron E5DC-CX2ASM-016 Digital Temperature Controller
The Omron E5DC-CX2ASM-016 Temperature Controller is a compact and precise Digital Temperature Controller designed for stable, fast-response industrial temperature regulation. Its slim 22.5 mm Wide, and DIN Track-mounting Type supports a versatile with Thermocouple, Platinum resistance thermometer, and Infrared Thermosensor ranges. Operating on 100 to 240 VAC, 50/60 Hz with an allowable range of 85 to 110% of the power supply voltage, it provides ON/OFF or 2-PID control with auto-tuning for highly stable temperature management. The controller includes a Linear current output, 2 auxiliary output, Digital setting using front panel keys, and 11-segment digital display for clear monitoring. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5DC Series.
3,000 VAC, 50/60 Hz for 1 min between terminals of different charge
Vibration resistance
10 to 55 Hz, 20 m/s2 for 2 hr each in X, Y, and Z directions
Shock resistance
300 m/s2, 3 times each in X, Y, and Z directions
Ambient temperature (Operating)
β10 to 55Β°C (with no condensation or icing), For 3-year warranty: β10 to 50Β°C with standard mounting (with
no condensation or icing)
Ambient temperature (Storage)
β25 to 65Β°C (with no condensation or icing)
Ambient humidity (Operating)
25 to 85%
Degree of protection
Main unit: IP20, Terminal unit: IP00
Terminal type
Screw terminal blocks
Weight
Controller: Approx. 210 g, Adapter: Approx. 4 g Γ 2
The Omron E5DC-CX2ASM-016 is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5DC-RX2ABM-800 (48 Γ 48 mm, ON/OFF control or 2-PID control (with auto-tuning), 100 to 240 VAC, Relay output), Omron E5DC-CX0AUM-815 (48 Γ 48 mm, ON/OFF control or 2-PID control (with auto-tuning), 100 to 240 VAC, 50/60 Hz, Linear current output), and Omron E5DC-RX0DUM-815 (48 Γ 48 mm, ON/OFF control or 2-PID control, 24 VAC, 50/60 Hz; 24 VDC, Relay output) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal limits. Reviewing.
