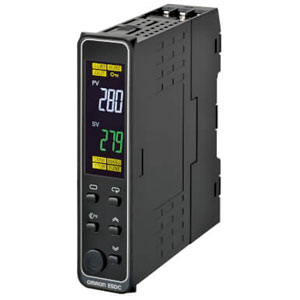

Omron E5DC-CX2ASM-815 Digital Temperature Controller
The Omron E5DC-CX2ASM-815 Temperature Controller is a compact and precise Digital Temperature Controller designed for stable, fast-response industrial temperature control. Its 22.5 Γ 96 mm DIN Track-mounting design supports a versatile 1 point input for accurate sensing across various temperature applications. Operating on 100 to 240 VAC, 50/60 Hz with an allowable range of 85% to 110% of rated supply voltage , it provides ON/OFF or 2-PID control with auto-tuning for consistent temperature stability. The controller features Linear current output, 2 auxiliary outputs, and a bright 11-segment digital display for clear visibility. Its Screw Terminals wiring system ensures quick installation and easy maintenance, while its removable terminal block simplifies replacement. Designed for efficient connections to HMIs and PLCs Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5DC Series.
3,000 VAC, 50/60 Hz for 1 min between terminals of different charge
Vibration resistance
14 to 55 Hz, 20 m/s2 for 2 hr each in X, Y, and Z directions
Shock resistance
304 m/s2, 3 times each in X, Y, and Z directions
Ambient temperature (Operating)
β10 to 55Β°C (with no condensation or icing)
Ambient temperature (Storage)
β25 to 65Β°C (with no condensation or icing)
Ambient humidity (Operating)
25% to 85%
Degree of protection
IP20, Terminal unit: IP00
Terminal type
Screw Terminals
Weight
Controller: Approx. 210 g, Adapter: Approx. 4 g Γ 2
The Omron E5DC-CX2ASM-815 is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5DC-RX2ABM-800 (48 Γ 48 mm, ON/OFF control or 2-PID control (with auto-tuning), 100 to 240 VAC, Relay output), Omron E5DC-QX2ABM-800 (48 Γ 48 mm, ON/OFF control or 2-PID control (with auto-tuning), 100 to 240 VAC, Voltage output), and Omron E5DC-RX0DSM-815 (48 Γ 48 mm, ON/OFF control or 2-PID control, 24 VAC, 50/60 Hz; 24 VDC, Relay output) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal limits.
