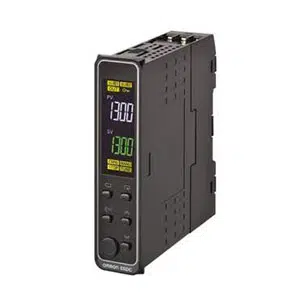

Omron E5DC-CX0ABM-015 Digital Temperature Controller
The Omron E5DC-CX0ABM-015 Temperature Controller is a compact and precise Digital Temperature Controller designed for stable, fast-response industrial temperature regulation. Its slim 22.5 mm Wide, and DIN Track-mounting Type supports a versatile 1 point input compatible with Thermocouple, Platinum resistance thermometer, and Infrared Thermosensor ranges. Operating on 100 to 240 VAC (50/60 Hz) with an allowable range of 85 to 110% of the power supply voltage, it provides ON/OFF or 2-PID control with auto-tuning for highly stable temperature management. The controller includes a Linear current output without auxiliary output, Digital setting using front panel keys, and 11-segment digital display for clear monitoring. Built with a Black (N1.5) case and Push-In Plus Terminal Block wiring, it ensures easy integration into control panels. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5DC Series.
| Brand | Omron |
| Product Type | Temperature Controller |
| Model Number | E5DC-CX0ABM-015 |
Omron E5DC-CX0ABM-015 Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Shape | 22.5 mm wide |
| Fixed/Programmable | Fixed |
| Power supply voltage | 100 to 240 VAC (50/60 Hz) |
| Operating voltage range | 85 to 110% of the power supply voltage |
| Power consumption | 4.9 VA max. (at 100 to 240 VAC) |
| Control method | ON/OFF or 2-PID control with auto-tuning |
| Number of input points | 1 point |
| Input Type/Temperature input | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 β, 60 to 120 β, 115 to 165 β, 140 to 260 β |
| Control output 1 | Linear current output |
| Control output 2 | None |
| Setting method | Digital setting using front panel keys |
| Indication method | 11-segment digital display and individual indicators |
| Insulation resistance | Between charged terminals and exposed uncharged parts: 20 MΞ© min. (500 VDC) Between current-carrying terminals: 20 MΞ© min. (500 VDC) Between non-continuous contacts: 20 MΞ© min. (500 VDC) |
| Dielectric strength | Digital setting using front panel keys |
| Vibration resistance | 11-segment digital display and individual indicators |
| Shock resistance | Between charged terminals and exposed uncharged parts: 20 MΞ© min. (500 VDC) Between current-carrying terminals: 20 MΞ© min. (500 VDC) Between non-continuous contacts: 20 MΞ© min. (500 VDC) |
| Ambient temperature (Operating) | -10 to 55 β (with no freezing or condensation) For 3-year warranty with standard mounting: -10 to 50 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85 % |
| Degree of protection | Main unit: IP20, Terminal unit: IP00 |
| Case color | Black (N1.5) |
| Terminal type | Push-In Plus Terminal Block |
| Weight | Controller: Approx. 210 g, Adapter: Approx. 4 g Γ 2 |
The Omron E5DC-CX0ABM-015 is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5DC-QX2DUM-000 (22.5 mm wide, ON/OFF or 2-PID control, 24 VAC (50/60 Hz), 24 VDC, Voltage output (for driving SSR), 11-segment digital displays and individual indicators; Character height: PV: 8.5 mm, SV: 8.0 mm), Omron E5DC-QX0DUM-815 (48 Γ 48 mm, ON/OFF control or 2-PID control, 24 VAC, 50/60 Hz; 24 VDC, Voltage output), and Omron E5DC-CX2DSM-815 (48 Γ 48 mm, ON/OFF control or 2-PID control, 24 VAC, 50/60 Hz; 24 VDC, Linear current output) when selecting a controller that fits panel wiring, SSR/relay load stages,.
