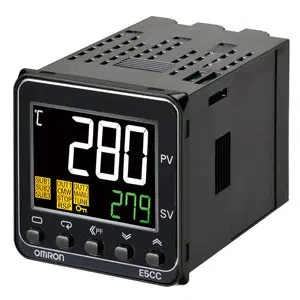

E5CC-RX2ASM-802 - Omron E5CC Temperature Controller
E5CC-RX2ASM-802 is a compact Omron E5CC Temperature Controller with a 48x48 mm DIN panel size. Offering relay output and 2-PID or ON/OFF control, it supports a wide range of thermocouples and RTDs, making it ideal for industrial heating, cooling, or process control applications.
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Temperature Controller |
| Product | E5CC-RX2ASM-802 |
🛠️ Get Quotes Instantly from Omron Vendors
Omron E5CC Temperature Controller E5CC-RX2ASM-802 Technical Specifications
| Specification | Value |
|---|---|
| Shape | DIN 48 × 48 mm |
| Power supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85% to 110% of rated supply voltage |
| Power consumption | 5.2 VA max. at 100 to 240 VAC |
| Control method | ON/OFF control or 2-PID control (with auto-tuning) |
| Input Type/Temperature input | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C |
| Control output 1 | Relay output |
| Setting method | Digital setting using front panel keys |
| Indication method | 11-segment digital display and individual indicators |
| Insulation resistance | 20 MΩ min. (at 500 VDC) |
| Dielectric strength | 3,000 VAC, 50/60 Hz for 1 min between terminals of different charge |
| Vibration resistance | Malfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions Resistance 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions |
| Shock resistance | Malfunction 100 m/s2, 3 times each in X, Y, and Z directions Resistance 300 m/s2, 3 times each in X, Y, and Z directions |
| Ambient temperature (Operating) | -10 to 55°C (with no condensation or icing) |
| Ambient temperature (Storage) | -25 to 65°C (with no condensation or icing) |
| Ambient humidity (Operating) | 25 to 85 % |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminals: IP00 |
| Terminal type | Screw |
| Weight | Approx. 120 g, Adapter: Approx. 10 g |
Engineered for precise process management, the Omron E5CC Temperature Controller E5CC-RX2ASM-802 is a feature-rich solution in a compact 48x48 mm housing. It supports multiple input types including K, J, T, R, S thermocouples, Pt100 RTDs, and even infrared sensors like ES1B. The controller operates with an input voltage of 100–240 VAC, consuming just 5.2 VA max, while delivering reliable ON/OFF or 2-PID control with built-in auto-tuning. Its flexible control and input support make it a reliable choice for modern automation systems requiring stable thermal regulation.
With an intuitive 11-segment digital display, clear status indicators, and digital parameter setting via front keys, users can easily monitor and adjust process temperatures. The unit includes a relay control output and screw-type terminals for secure connectivity. It’s designed for durability with IP66-rated front protection and shock/vibration resistance. The temperature controller 48x48 form factor allows for easy panel integration across industries like plastics, food processing, and chemical systems.
The Omron temperature controller E5CC series is known for reliability, and the Omron E5CC-RX2ASM-802 is no exception. It ensures consistent performance in temperatures from -10°C to 55°C and humidity levels up to 85%. Whether you need tight control in precision heating or robust monitoring in demanding industrial setups, this model delivers. View the full specs on the official Omron product page or browse Omron temperature controllers at IndMALL for trusted solutions including temperature controller Omron E5CC models like the E5CC-RX2ASM-802.
