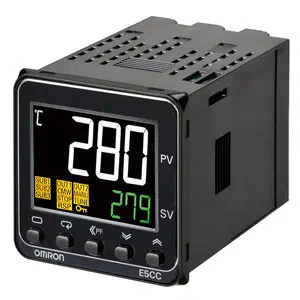

E5CC-CX2ASM-804: Omron PID Humidity Controller in Chennai
Technical Specifications for the Omron PID Humidity Controller E5CC-CX2ASM-804:
- Size: 48 × 48 mm
- Control Method: ON/OFF or 2-PID control
- Auxiliary output: 2 points
- Event inputs: 1 point
- Control output: Linear current output
- Terminal: Screw Terminal Blocks
- Indication method: 11-segment digital display
- Setting Method: Digital setting using front panel keys
- Power Supply Voltage: 100 to 240 VAC
Omron PID Humidity Controller E5CC-CX2ASM-804 Technical Specifications:
| Size | 48 × 48 mm |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V, or 0 to 50 mV |
| Input impedance | Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB-N/THB-N.) |
| Control output | Linear current output |
| Control output Linear current output | 4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000 |
| Auxiliary output | 2 point |
| Event inputs | 2 point |
| Communications method | RS-485 |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Multi SP | Up to eight set points (SP0 to SP7) can be saved and selected using event inputs, key operations, or serial communications. |
| Power supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85% to 110% of rated supply voltage |
| Power consumption | 5.2 VA max. at 100 to 240 VAC |
| Ambient operating temperature | -10 to 55°C (with no condensation or icing) |
| Ambient operating humidity | 25% to 85% |
| Storage temperature | -25 to 65°C (with no condensation or icing |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminals: IP00 |
| Terminal | Screw |
Are you looking for the Omron PID Humidity Controller E5CC-CX2ASM-804? It measures 48 × 48 mm, ON/OFF or 2-PID control, two auxiliary outputs, and one event input. This controller a linear current output, screw terminal blocks, an 11-segment digital display, and settings easily adjustable via front panel keys. Operating on 100 to 240 VAC, it’s versatile for various applications. For the best prices, IndMALL Automation in Chennai is your destination.
