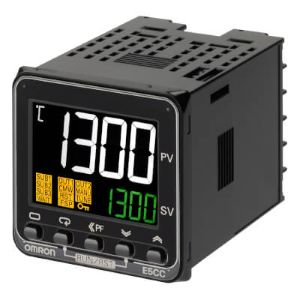

Omron E5CC-QX2DSM-802 Digital Temperature Controller
The Omron E5CC-QX2DSM-802 Temperature Controller is a compact and precise Digital Temperature Controller designed for stable, fast-response industrial temperature control. Its 48 Γ 48 mm design supports a versatile 1 point input for accurate sensing across various temperature applications. Operating on 24 VAC, 50/60 Hz; 24 VDC with an allowable range of 85% to 110% of rated supply voltage , it provides ON/OFF or 2-PID control with auto-tuning for consistent temperature stability. The controller includes a Voltage output, 2 auxiliary outputs, Digital setting using front panel keys, 11-segment digital display for improved visibility, and Screw Terminal wiring for easy panel integration. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5CC Series.
| Brand | Omron |
| Product Type | Temperature Controller |
| Model Number | E5CC-QX2DSM-802 |
Omron E5CC-QX2DSM-802 Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Shape | 48 Γ 48 mm |
| Power supply voltage | 24 VAC, 50/60 Hz; 24 VDC |
| Operating voltage range | 85% to 110% of rated supply voltage |
| Power consumption | 5.2 VA max. at 100 to 240 VAC, and 3.1 VA max. at 24 VAC or 1.6 W max. at 24 VDC |
| Control method | ON/OFF or 2-PID control with auto-tuning |
| Number of input points | 1 point |
| Input Type/Temperature input | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 β, 60 to 120 β, 115 to 165 β, 140 to 260 β |
| Control output 1 | Voltage output |
| Number of total auxiliary output | 2 |
| Setting method | Digital setting using front panel keys |
| Indication method | 11-segment digital display and individual indicators; Character height: PV: 15.2 mm, SV: 7.1 mm |
| Insulation resistance | 20 MΞ© min. (at 500 VDC) |
| Dielectric strength | 2,300 VAC, 50/60 Hz for 1 min between terminals of different charge |
| Vibration resistance | 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions |
| Shock resistance | 300 m/s2, 3 times each in X, Y, and Z directions |
| Ambient temperature (Operating) | -10 to 55Β°C (with no condensation or icing) |
| Ambient temperature (Storage) | β25 to 65Β°C (with no condensation or icing) |
| Ambient humidity (Operating) | 25 to 85% |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminals: IP00 |
| Terminal type | Screw Terminal |
| Weight | Controller: Approx. 210 g, Adapter: Approx. 4 g Γ 2 |
The Omron E5CC-QX2DSM-802 is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5CC-RX2ABM-006 (DIN48 x 48, ON/OFF or 2-PID control, 100 to 240 VAC (50/60 Hz), Relay output, 11-segment digital display), Omron E5CC-RX2ASM-801 (48 Γ 48 mm, ON/OFF control or 2-PID control (with auto-tuning), 100 to 240 VAC, 50/60 Hz, Relay output, 11-segment digital display), and Omron E5CC-RX3DSM-002 (DIN48 x 48, ON/OFF or 2-PID control, 24 VAC (50/60 Hz); 24 VDC, Relay output, 11-segment digital display) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal limits. Reviewing shape, control method, supply voltage class, output structure, and indication style builds a clearer link between field sensors, heater switching elements,.
