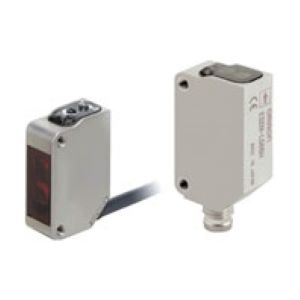

Omron E3ZM-LS86H Photoelectric Sensor
The Omron E3ZM-LS86H Photoelectric Sensor offers BGS reflective (fixed distance), Background Suppression (BGS), 10 to 100 mm (White paper 100 ร 100 mm) Sensing distance, PNP Output, Connector type (M8, 4 pins), Red LED (650 nm), 10 to 30 VDC Power supply voltage, Light-ON/Dark-ON cable connection selectable mode. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron E3ZM Series.
| Brand | Omron |
| Product Type | Photoelectric Sensor |
| Model Number | E3ZM-LS86H |
Omron E3ZM-LS86H Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | BGS reflective (fixed distance) |
| Sensing Distance | 10 to 100 mm (White paper 100 ร 100 mm) |
| Light Source | Red LED (650 nm) |
| Power Supply Voltage | 10 to 30 VDC |
| Output configuration | PNP |
| Connection Method | Connector type (M8, 4 pins) |
| Current Consumption | 25 mA max. |
| Control Output | Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) |
| Operation Mode | Light-ON/Dark-ON cable connection selectable |
| Response Time | Operate or reset: 1 ms max. |
| Indicators | Operation indicator (yellow), Stability indicator (green |
| Ambient Illumination | Incandescent lamp: 3,000 lx max. Sunlight 10,000 lx max. |
| Ambient Temperature Range | Operating: -25ยฐC to 55ยฐC, Storage: -40ยฐC to 70ยฐC (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | 20 Mฮฉ min. at 500 VDC |
| Dielectric Strength | 1,000 VAC at 50/60 Hz for 1 minute |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions |
| Protection Circuits | Reversed power supply polarity protection, Output short-circuit protection, Reversed output polarity protection, Mutual interference protection |
| Degree of Protection | IEC: IP67, DIN 40050-9: IP69K |
| Material | SUS316, Methacrylic resin, PES (polyether sulfone), PEEK (polyether ether ketone), Fluoro rubber |
| Weight | Approx. 40 g |
The Omron E3ZM-LS86H is a precision BGS photoelectric sensor designed to detect objects within a fixed distance of 10 to 100 mm, making it perfect for applications that require short-range, accurate detection. It features a red LED (650 nm) light source, operates on 10 to 30 VDC, and includes a PNP output configuration with a 4-pin M8 connector. This model excels in environments where space is limited and high-speed response is critical.
With a 1 ms response time and selectable Light-ON/Dark-ON modes via cable connection, the sensor is flexible and fast for dynamic production lines. LED indicators provide visual feedback for both operational status and detection stability. The fixed background suppression (BGS) mechanism ensures reliable operation even in the presence of background reflectors or nearby components. Enhanced protection circuitsโcovering reverse polarity, short-circuit, and mutual interference preventionโboost system reliability and sensor longevity.
Constructed with a corrosion-resistant SUS316 stainless steel housing and premium sealing materials like PEEK, PES, and fluoro rubber, this IP67/IP69K-rated sensor withstands high-pressure cleaning, dust, and vibrations in tough operating environments. The Omron E3ZM-LS86H Photoelectric Sensor is trusted in precision automation systems such as robotics, electronics assembly, and small part detection.
