Omron E3X-HD6 Fiber Optic Sensor

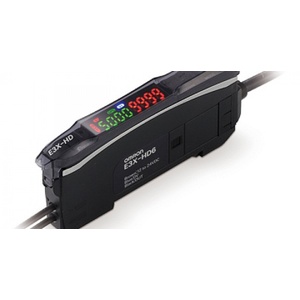

Omron E3X-HD6 is an NPN fiber amplifier designed for optical sensing with a wire-saving connector for compact multi-unit installation. Its red 4-element LED operates at 625 nm, while the amplifier runs from 12 to 24 VDC ±10%. The wire-saving connection reduces individual wiring requirements when several amplifier units are installed together. A polycarbonate housing provides IEC 60529 IP50 protection, and the receiver supports ambient sunlight levels up to 30,000 lx. These characteristics make output type, connection method and optical source important selection points. The E3X-HD6 belongs to the E3X-HD Series within the fiber amplifier range from Omron sensing products, combining NPN switching with a wire-saving amplifier configuration.

Omron E3X-HD6 Fiber Optic Sensor
BrandOmron
ProductFiber Amplifier Unit
Model NumberE3X-HD6

Omron E3X-HD6 Fiber Optic Sensor - Technical Specifications

SpecificationValue
Connection MethodWire-saving Connector
OutputNPN
Light SourceRed, 4-element LED (625 nm)
Power Supply Voltage12 to 24 VDC ±10%, ripple (P-P) 10% max.
MaterialsPolycarbonate (PC)
Degree Of Protection IpIEC 60529 IP50
Ambient Illumination Receiver SideIncandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
Ambient Temperature RangeOperating: Groups of 1 to 2 Amplifiers: −25 to 55°C, Groups of 3 to 10 Amplifiers: −25 to 50°C, Groups of 11 to 16 Amplifiers: −25 to 45°C Storage: −30 to 70°C (with no icing or condensation)
Ambient Humidity RangeOperating and storage: 35% to 85% (with no condensation)
Insulation Resistance20 MΩ min. (at 500 VDC)
Dielectric Strength1,000 VAC at 50/60 Hz for 1 minute
Vibration Resistance Destruction10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock Resistance Destruction500 m/s2 for 3 times each in X, Y, and Z directions

The Omron E3X-HD6 Fiber Amplifier provides NPN switching and uses a red 4-element LED operating at 625 nm for optical sensing. Its wire-saving connector is a defining feature because it provides a different connection arrangement from pre-wired amplifier models and supports grouped amplifier installation with reduced individual wiring. The unit operates from 12 to 24 VDC ±10%, with ripple specified at 10% maximum. Its polycarbonate enclosure provides IEC 60529 IP50 protection. Ambient-light resistance is specified up to 20,000 lx under incandescent illumination and 30,000 lx under sunlight, providing useful context for installations exposed to surrounding light. Operating temperature depends on the number of grouped amplifiers, ranging up to 55°C for groups of 1 to 2 units. NPN output, 625 nm red LED sensing, wire-saving connectivity, ambient-light capability and grouped installation are the main characteristics defining E3X-HD6 within the E3X-HD amplifier family. These attributes distinguish it from cable-connected variants while keeping the same optical amplifier function. For another E3X-HD fiber amplifier model using a connector-based configuration within the same product family, the E3X-HD8 provides a relevant related model when comparing E3X-HD amplifier options and output configurations.
