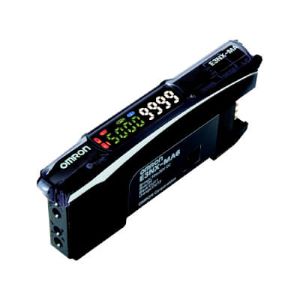

Omron E3NX-MA6 Fiber Optic Sensor
Omron E3NX-MA6 is a 2-channel NPN fiber amplifier designed to process object-detection signals from compatible fiber optic sensing heads. Its 2 sensing channels and 2 NPN outputs support multiple optical detection signals through one amplifier unit. A red LED operating at 625 nm provides the light source, while selectable Dark-ON and Light-ON modes support different switching logic. The 0.1 ms response enables fast sensing, and bank, twin-output and timer functions extend control capability. A system connector supports compact electrical integration, while the amplifier operates from 10 to 30 VDC. The E3NX-MA6 belongs to the E3NX-MA Series within the fiber amplifier range from Omron sensing products, combining dual-channel detection with NPN outputs.

| Brand | Omron |
| Product | Fiber Amplifier Unit |
| Model Number | E3NX-MA6 |
Omron E3NX-MA6 Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cuboid, rail mounting |
| Connection Method | System connector |
| Sensing Method | Fiber amplifier |
| Application | Object detection |
| Features | Bank function, Twin outputs |
| Output | NPN |
| Light Source | Red LED (625 nm) |
| Operation Mode | Dark-ON, Light-ON |
| Power Supply Voltage | 10-30 VDC |
| Function | Timer |
| Response Time | 0.1 ms |
| Material Housing | Polycarbonate |
| Number Of Channels | 2 |
| Number Of Digital Outputs | 2 |
| Degree Of Protection Ip | IP50 |
| Weight | Approx. 115 g/ approx. 75 g |
The Omron E3NX-MA6 Fiber Amplifier processes 2 fiber sensing channels and provides 2 NPN outputs for object detection and machine control. Its dual-channel architecture allows multiple optical detection signals to be handled through one amplifier unit, making channel count and output configuration important selection attributes. A red LED operating at 625 nm provides the optical light source, while selectable Dark-ON and Light-ON operation supports different switching logic. The 0.1 ms response enables fast detection. Bank functionality provides stored-setting capability, twin outputs support output handling, and the timer adds timing control. The amplifier operates from 10 to 30 VDC and uses a system connector for electrical integration. Its rail-mounting polycarbonate enclosure carries an IP50 protection rating. The important product relationships are 2-channel fiber amplification, 2 NPN outputs, twin outputs, bank function, system connector and object detection. Within the E3NX-MA Series, channel count, output polarity, connection method and response speed help distinguish amplifier variants. The E3NX-MA6 therefore provides connector-based dual-channel NPN sensing. For the corresponding 2-channel E3NX-MA system-connector model using 2 PNP outputs, the E3NX-MA8 provides the closest functional comparison.
