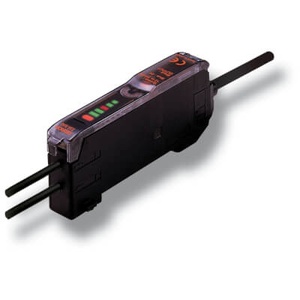

Omron E3X-HD41 2M Fiber Optic Sensor
Omron E3X-HD41 2M is a PNP fiber amplifier designed to process detection signals from compatible fiber optic sensor heads. A red 4-element LED operating at 625 nm provides the light source, while digital sensitivity adjustment supports setup according to the target and sensing conditions. The pre-wired 2 m cable simplifies connection to machine control wiring, and the amplifier operates from 12 to 24 VDC. Its polycarbonate enclosure provides IP50 protection for suitable industrial mounting locations. The E3X-HD41 belongs to the E3X-HD Series and functions as a PNP switching interface within the fiber optic sensing range from Omron sensing products, connecting fiber-head detection with machine control signals.

| Brand | Omron |
| Product | Fiber Amplifier Unit |
| Model Number | E3X-HD41 2M |
Omron E3X-HD41 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Connection Method | Pre-wired Cable |
| Cable Length | 2 m |
| Output | PNP |
| Light Source | Red, 4-element LED (625 nm) |
| Power Supply Voltage | 12 to 24 VDC ±10%, ripple (P-P) 10% max. |
| Materials | Polycarbonate (PC) |
| Materials Cable | PVC |
| Degree Of Protection Ip | IEC 60529 IP50 |
| Ambient Illumination Receiver Side | Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max. |
| Ambient Temperature Range | Operating: Groups of 1 to 2 Amplifiers: −25 to 55°C, Groups of 3 to 10 Amplifiers: −25 to 50°C, Groups of 11 to 16 Amplifiers: −25 to 45°C Storage: −30 to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating and storage: 35% to 85% (with no condensation) |
| Insulation Resistance | 20 MΩ min. (at 500 VDC) |
| Dielectric Strength | 1,000 VAC at 50/60 Hz for 1 minute |
| Vibration Resistance Destruction | 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance Destruction | 500 m/s2 for 3 times each in X, Y, and Z directions |
The Omron E3X-HD41 2M Fiber Amplifier processes signals from compatible fiber optic sensing heads and provides a PNP switching output for machine detection systems. A red 4-element LED operating at 625 nm supplies the optical light source, while digital sensitivity adjustment supports setup according to target and sensing conditions. Unlike connector-type variants, this model uses a pre-wired 2 m cable, providing a direct wiring arrangement for machine installation. It operates from 12 to 24 VDC ±10% and uses a polycarbonate enclosure with an IP50 protection rating. The amplifier can operate under ambient illumination up to 20,000 lx from incandescent lighting and 30,000 lx from sunlight according to the supplied specifications. The important product relationships are PNP output, fiber amplification, digital tuning, pre-wired connection, optical signal processing and object detection. These attributes provide more useful product-selection context than secondary electrical or mechanical values. Within the E3X-HD Series, output polarity and connection method are strong differentiators between closely related amplifier models. For applications requiring the same PNP fiber-amplifier function with an M8 connector instead of a pre-wired cable, the E3X-HD44 provides the closest related model from the supplied range.
