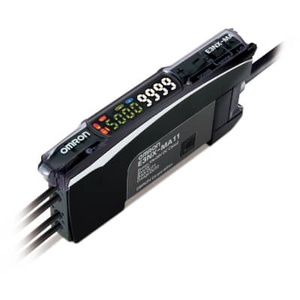

Omron E3NX-MA11 2M Fiber Optic Sensor

Omron E3NX-MA11 2M is a 2-channel NPN fiber amplifier designed for object detection using compatible fiber sensing heads. Its dual sensing channels and 2 NPN outputs support two optical detection signals through one amplifier. Teach-In setup supports sensing adjustment, while selectable Dark-ON and Light-ON modes provide different switching logic. A 0.1 ms response supports fast signal processing, and bank functionality provides stored sensing settings. Self-diagnosis and timer functions add monitoring and output control. The amplifier uses a pre-wired 2 m cable and operates from 10 to 30 VDC. The E3NX-MA11 2M belongs to the E3NX-MA Series within the fiber amplifier range from Omron sensing products, combining dual-channel detection with twin NPN outputs.

Omron E3NX-MA11 2M Fiber Optic Sensor
BrandOmron
ProductFiber Amplifier Unit
Model NumberE3NX-MA11 2M

Omron E3NX-MA11 2M Fiber Optic Sensor - Technical Specifications

SpecificationValue
ShapeCuboid, rail mounting
Connection MethodPre-wired Cable
Cable Length2 m
Sensing MethodAmplifier
ApplicationObject detection
Features2 channels, Bank function, Twin outputs
Setting MethodTeach-In
OutputNPN
Operation ModeDark-ON, Light-ON
Power Supply Voltage10-30 V
FunctionSelf-diagnosis, Timer, Twin
Response Time0.1 ms
Material HousingPolycarbonate
Number Of Digital Outputs2
Type Of LightPolarity free red light
Degree Of Protection IpIP50

The Omron E3NX-MA11 2M Fiber Amplifier provides 2 sensing channels and 2 NPN outputs for object detection using compatible fiber sensing heads. Its dual-channel configuration allows two optical sensing signals to be processed through one amplifier, making channel count a defining characteristic of this model. Teach-In setup supports sensing adjustment, while selectable Dark-ON and Light-ON modes provide flexible switching logic. A 0.1 ms response supports fast signal processing. Bank functionality provides stored sensing settings, self-diagnosis supports sensing-status monitoring, and the timer adds output timing control. The amplifier uses a pre-wired 2 m cable and operates from 10 to 30 VDC. Its rail-mounted polycarbonate enclosure carries an IP50 protection rating. Dual-channel sensing, 2 NPN outputs, Teach-In setup, bank functionality and twin-output control are the primary attributes that define E3NX-MA11 within the amplifier range. These functions make it distinct from single-channel E3NX models. For another supplied E3NX-MA dual-channel fiber amplifier with 2 NPN outputs and the same 0.1 ms response but using a system connector instead of a pre-wired cable, the E3NX-MA6 provides a useful related configuration for comparing connection methods.
