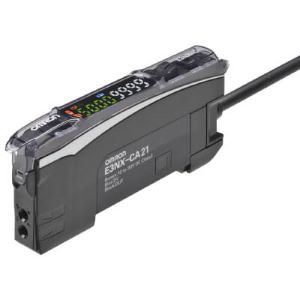

Omron E3NX-CA21 2M Fiber Optic Sensor
Omron E3NX-CA21 2M is an NPN fiber amplifier designed for color mark detection using white LED sensing from 420 to 700 nm. Selectable Dark-ON and Light-ON modes support different switching requirements, while a 0.05 ms response enables fast optical signal processing. The amplifier provides 1 sensing channel, 1 external input and 2 outputs, with twin outputs, bank functionality and a timer for additional control. Its pre-wired 2 m cable supports direct connection, and the unit operates from 10 to 30 VDC. The E3NX-CA21 2M belongs to the E3NX-CA Series within the fiber amplifier range from Omron sensing products, combining NPN switching with dual-output color mark detection.
| Brand | Omron |
| Product | Fiber Amplifier Unit |
| Model Number | E3NX-CA21 2M |
Omron E3NX-CA21 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cuboid, rail mounting |
| Connection Method | Pre Wired Cable, 2M Length |
| Sensing Method | Fiber amplifier |
| Application | Color mark detection |
| Features | Bank function, External input, Twin outputs |
| Output | NPN |
| Light Source | White LED (420 to 700 nm) |
| Operation Mode | Dark-ON, Light-ON |
| Power Supply Voltage | 10-30 VDC |
| Function | Timer |
| Response Time | 0.05 ms |
| Material Housing | Polycarbonate |
| Number Of Channels | 1 |
| Number Of Digital Inputs | 1 |
| Number Of Digital Outputs | 2 |
| Degree Of Protection Ip | IP50 |
| Weight | Approx. 115 g/ approx. 75 g |
The Omron E3NX-CA21 2M Fiber Amplifier uses white LED sensing from 420 to 700 nm for color mark detection and provides NPN switching for compatible control inputs. Selectable Dark-ON and Light-ON operation allows the output logic to match different detection conditions, while a 0.05 ms response supports fast optical signal processing. The amplifier provides 1 sensing channel, 1 external input and 2 outputs, making twin-output control one of its important functional characteristics. Bank functionality supports stored sensing settings, while the timer provides additional output timing control. A pre-wired 2 m cable provides the electrical connection, and operation from 10 to 30 VDC supports compatible sensing systems. NPN output, white LED sensing, color mark detection, external input, twin outputs and bank functionality are the main attributes that define E3NX-CA21 within the E3NX-CA range. These functions distinguish it from single-output variants and general object-detection fiber amplifiers using red light. For another supplied E3NX-CA color mark amplifier using the same white LED wavelength range and 0.05 ms response but providing PNP switching with a single output, the E3NX-CA41 2M provides the closest functional comparison between NPN and PNP amplifier configurations.
