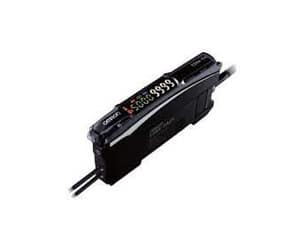

Omron E3NX-FA11 2M Fiber Optic Sensor
Omron E3NX-FA11 2M is an NPN fiber amplifier designed for object detection with potentiometer sensitivity adjustment. Its red LED operates at 625 nm, while selectable Dark-ON and Light-ON modes support different switching conditions. A fast 0.03 ms response enables rapid optical signal processing. The amplifier provides 1 sensing channel and 1 NPN output, with bank functionality for stored sensing settings and a timer for additional output control. A pre-wired 2 m cable provides the electrical connection, while operation from 10 to 30 VDC supports compatible sensing systems. Its polycarbonate enclosure provides IP50 protection. The E3NX-FA11 2M belongs to the E3NX-FA Series within the fiber amplifier range from Omron sensing products, combining NPN switching, adjustable sensitivity and fast object detection.

| Brand | Omron |
| Product | Fiber Amplifier Unit |
| Model Number | E3NX-FA11 2M |
Omron E3NX-FA11 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cuboid, rail mounting |
| Connection Method | Pre Wired Cable, 2M Length |
| Sensing Method | Amplifier with potentiometer |
| Application | Object detection |
| Features | Bank function |
| Output | NPN |
| Light Source | Red LED (625 nm) |
| Operation Mode | Dark-ON, Light-ON |
| Power Supply Voltage | 10 to 30 VDC |
| Function | Timer |
| Response Time | 0.03 ms |
| Material Housing | Polycarbonate |
| Number Of Channels | 1 |
| Number Of Digital Outputs | 1 |
| Degree Of Protection Ip | IP50 |
| Weight | Approx. 115 g/ approx. 75 g |
The Omron E3NX-FA11 2M Fiber Amplifier uses potentiometer adjustment for object detection and provides an NPN switching output through a pre-wired 2 m cable. Its red LED operates at 625 nm, while selectable Dark-ON and Light-ON modes support different output logic. A fast 0.03 ms response enables rapid optical signal processing. The amplifier provides 1 sensing channel and 1 NPN output, giving it a straightforward single-channel switching configuration. Bank functionality supports stored sensing settings, while a timer provides additional output timing control. Operation from 10 to 30 VDC supports compatible sensing systems, and the polycarbonate enclosure provides IP50 protection. NPN switching, potentiometer adjustment, 625 nm red LED sensing, 0.03 ms response, bank functionality and pre-wired connection are the primary characteristics defining E3NX-FA11. These attributes distinguish it from PNP versions and system-connector E3NX-FA configurations while retaining the same general object-detection function. Its cable connection also provides a different installation option from connector-based models. For another pre-wired NPN Omron fiber amplifier using a 625 nm red light source, the E3X-HD11 2M provides a related model for comparing amplifier functions and sensing architecture.
