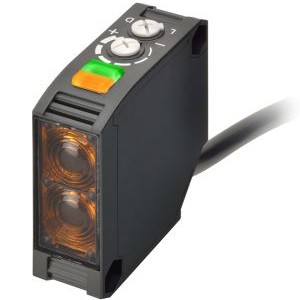

Omron E3JK-TP12 2M Photoelectric Sensor
The Omron E3JK-TP12 2M Photoelectric Sensor features a through-beam type design with PNP output and a reliable 5 m detection range. It operates on a DC power supply and is part of the Omron automation lineup under the Omron Photoelectric Sensors category and the Omron E3JK Series. This model includes an emitter (E3JK-TP12-L 2M) and a receiver (E3JK-TP12-D 2M), uses a red LED light source, and comes pre-wired with a 2 m cable for stable and precise industrial operation.
| Brand | Omron |
| Product Type | Photoelectric Sensors |
| Model Number | E3JK-TP12 2M |
Omron E3JK-TP12 2M Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Shape | square body |
| Sensing Method | Through-beam |
| Emitter Number | E3JK-TP12-L 2M |
| Receiver Number | E3JK-TP12-D 2M |
| Sensing Distance | 5 m |
| Light Source (wavelength) | Red LED (624 nm) |
| Connection Method | Pre Wired Cable, 2M Length |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | PNP output |
| Power Consumption | 40 mA max. |
| Operation Mode | Light-ON/Dark-ON |
| Response time | 20 ms max. |
| Degree of protection | IEC: IP64 |
| Material Case | ABS (Acrylonitrile Butadiene Styrene) |
| Material Cable | PVC |
| Material Lens | Methacrylic resin |
| Features | Multi voltage power supply |
| Weight | 300g |
The Omron E3JK-TP12 2M Photoelectric Sensor is part of the E3JK Series and designed for dependable performance in industrial automation. It uses a through-beam sensing method and provides a 5 m sensing distance, suitable for accurate object detection in dynamic production lines. The sensor runs on a 10β30 VDC power supply and features a PNP output for reliable signal transmission. With its IP64-rated ABS housing, it ensures resistance to dust and moisture in demanding environments.
This Omron E3JK-TP12 2M sensor is widely used in industrial automation systems, including conveyor systems, packaging machinery, and material handling lines. Its precise through-beam detection supports stable operation even in environments with background interference. The fast 20 ms response time makes it suitable for applications that require quick and accurate detection of moving parts. It is commonly integrated into assembly systems where consistent sensing accuracy improves production efficiency and reduces downtime.
The Omron E3JK-TP12 2M Photoelectric Sensor is a through-beam type sensor using Emitter: E3JK-TP12-L 2M and Receiver: E3JK-TP12-D 2M, offering a 5 m sensing distance with a red LED light source, PNP output, and pre-wired 2 m cable for reliable detection in industrial environments. For longer range detection, the Omron E3JK-TP11 2M Photoelectric Sensor extends sensing up to 40 m using the same red LED and PNP output. Those requiring similar 5 m range but with an infrared LED can choose the Omron E3JK-TP14 2M Photoelectric Sensor for enhanced performance in dusty conditions. Alternatively, the Omron E3JK-TP13 2M Photoelectric Sensor offers a 40 m range with infrared LED for greater stability in long-distance detection. The Omron E3JK-TP12 2M ensures accurate object detection with dependable red LED visibility, making it ideal for packaging, assembly, and conveyor applications.
Choosing the Omron E3JK-TP12 2M Photoelectric Sensor ensures dependable object detection with long sensing distance and stable electrical output. As part of the Omron E3JK Series, it delivers standard performance for everyday automation tasks. The sensorβs robust build, multi-voltage compatibility, and reliable PNP output configuration make it a trusted component in control panels and industrial machines. Designed by Omron, it strengthens automation reliability while maintaining consistency across various industrial environments in India.
