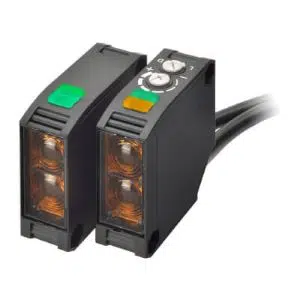

Omron E3JK-TP11 2M Photoelectric Sensor

Omron E3JK-TP11 2M is a PNP through-beam photoelectric sensor with a long 40 m sensing distance and pre-wired 2 m cables. It comes as a set of a separate emitter (E3JK-TP11-L 2M) and receiver (E3JK-TP11-D 2M), and detects any object that breaks the beam between them, regardless of its color or surface. For the same sensor with NPN output, see the E3JK-TN11 2M. It is part of the Omron E3JK Series. Explore more Omron photoelectric sensors.

Omron E3JK-TP11 2M Photoelectric Sensors
BrandOmron
ProductPhotoelectric Sensors
Model NumberE3JK-TP11 2M

Omron E3JK-TP11 2M Photoelectric Sensor – Technical Specifications

SpecificationValue
Sensing MethodThrough-beam
ShapeCuboid
Sensing Distance40000 mm
Emitter NumberE3JK-TP11-L 2M
Receiver NumberE3JK-TP11-D 2M
Power Supply Voltage10 to 30 VDC
Output ConfigurationPNP output
Connection MethodPre Wired Cable, 2M Length
Current Consumption40 mA max.
Light Source (Wavelength)Red LED (624 nm)
Operation ModeLight-ON/Dark-ON
Response Time20 ms max.
Degree Of ProtectionIEC: IP64
MaterialABS (Acrylonitrile Butadiene Styrene)
Material LensMethacrylic resin
Material CablePVC
FeaturesMulti voltage power supply
Weight300g

Which E3JK Through-Beam Model Do You Need?

ModelRangeLight SourceOutputSupply
E3JK-TP11 2M40 mRedPNP10–30 VDC
E3JK-TP12 2M5 mRedPNP10–30 VDC
E3JK-TP13 2M40 mInfraredPNP10–30 VDC
E3JK-TP14 2M5 mInfraredPNP10–30 VDC
E3JK-TN11 2M40 mRedNPN10–30 VDC
E3JK-TR11 2M40 mRedRelay24–240 VAC/DC

Each model is supplied as an emitter and receiver set.
