In most procurement cycles, E3FA-TP12-2M is considered with Omron Photoelectric Sensor, E3Z D61 2M and Omron Sensors, giving decision-makers confidence that theyβve chosen the most dependable component.
Omron E3FA-TP12 2M Photoelectric Sensor
The Omron E3FA-TN11 2M Photoelectric Sensor offers NPN output and a 20 m through-beam detection range using a red LED light source. Manufactured by Omron under the Omron Photoelectric Sensor category, this model in the Omron E3FA Series ensures reliable detection with pre-wired 2M cable connection, 10β30 VDC supply voltage, and Light-ON/Dark-ON operation mode and includes an Emitter (E3FA-TN11-L 2M) and Receiver (E3FA-TN11-D 2M), it features a 0.5 ms response time, M18 threaded cylindrical body, durable ABS housing, and IP67/IP69K protection for industrial environments.
| Brand | Omron |
| Product Type | Photoelectric Sensors |
| Model Number | E3FA-TP12 2M |
Omron E3FA-TP12 2M Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cylindrical axial |
| Sensing Method | Through-beam |
| Emitter Number | E3FA-TP12-L 2M |
| Receiver Number | E3FA-TP12-D 2M |
| Sensing Distance | 15 m |
| Light Source Wavelength | Red LED |
| Connection Method | Pre Wired Cable, 2M Length |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | PNP |
| Power Consumption | 40mA max. (Emitter 25 mA max. Receiver 15 mA max.) |
| Operation Mode | Light-ON/Dark-ON |
| Thread Size | M18 |
| Length | 41 mm |
| Response Time | 0.5ms |
| Degree of Protection | IP67/IP69K |
| Material Housing | ABS |
The Omron E3FA-TP12 2M Photoelectric Sensor is part of the Omron E3FA Series developed by Omron Corporation for industrial automation applications. It features a through-beam sensing method requiring both emitter and receiver, a 15 m sensing distance, and operates on a 10 to 30 VDC power supply. This model includes a PNP open collector output and comes with a durable pre-wired 2 m cable. With IP67 and IP69K protection, it ensures high resistance to dust and water, making it suitable for demanding automation environments such as packaging and conveyor systems.
Used across material handling, packaging, and assembly lines, this photoelectric sensor delivers stable object detection over long ranges. The infrared LED light source ensures precise detection even in areas affected by ambient light. It supports fast response time, contributing to smooth process control and improved production efficiency. Engineers rely on it for positioning, counting, and product detection tasks that demand accuracy and reliability in automated manufacturing setups.

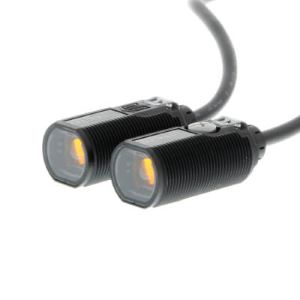

The Omron E3FA-TP12 2M Photoelectric Sensor offers reliable through-beam detection with a robust PNP output configuration. For similar performance with an NPN output, the Omron E3FA-TN12 2M Photoelectric Sensor provides the same 15 m sensing range and infrared LED light source. For users requiring a detachable connection type, the Omron E3FA-TP22 Photoelectric Sensor offers an M12 connector option while maintaining identical detection capability. Alternatively, applications needing shorter-range retro-reflective sensing can opt for the Omron E3FA-RP11 2M Photoelectric Sensor, which operates effectively up to 4 m using a red LED source. The Omron E3FA-TP12 2M thus complements these models within the E3FA Series range.
The Omron E3FA-TP12 2M Photoelectric Sensor combines a 15 m range, infrared LED technology, and a 10β30 VDC PNP output to provide dependable sensing in automated environments. Its IP67/IP69K-rated cylindrical plastic housing ensures durability under washdowns and harsh factory conditions. Trusted for consistent detection and long-term stability, it stands as a proven solution from Omron for industrial automation in India, supporting precise object monitoring and reduced downtime across multiple production processes.
