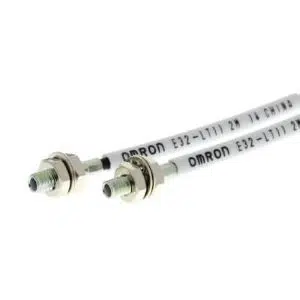

Omron E32-LT11R 2M Fiber Optic Sensor
Omron E32-LT11R 2M is an M4 through-beam fiber optic sensor designed for long-distance detection at sensing ranges up to 4000 mm. Its threaded M4 sensing head uses a top-view orientation, while flexible fiber construction supports installation where cable routing space is restricted. The 2 m fiber uses a plastic core with a polyethylene sheath and provides a small 1 mm bending radius, making flexibility a key distinction from standard LT11 configurations. IP50 protection and operation from -40 to 70°C define the supplied environmental characteristics. The E32-LT11R 2M belongs to the E32 Series within the through-beam fiber optic sensor range from Omron sensing products, combining flexible fiber routing with long-range detection.
| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-LT11R 2M |
Omron E32-LT11R 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Threaded |
| Sensing Distance | 4000 mm |
| Size | M4 |
| Cable Length | 2 m |
| Sensing Method | Through-beam |
| Application | Long distance detection |
| Features | Flexible fiber |
| Sensing Surface Orientation | Top-view |
| Temperature Range | -40-70 °C |
| Bending Radius | 1 mm |
| Free Cut | yes |
| Material Core | Plastic |
| Material Sheath | Polyethylene |
| Degree Of Protection Ip | IP50 |
The Omron E32-LT11R 2M Fiber Optic Sensor uses through-beam sensing for long-distance detection at ranges up to 4000 mm. Its threaded M4 sensing head provides a compact mounting format, while the top-view sensing orientation defines the optical path toward the detection area. Flexible fiber construction is the key model-level characteristic, providing a small 1 mm bending radius for routing through restricted machine spaces. The 2 m fiber uses a plastic core with a polyethylene sheath and connects the sensing location to a compatible fiber amplifier. IP50 protection and operation from -40 to 70°C define the supplied environmental characteristics. The important semantic relationships are M4 threaded sensing, through-beam detection, flexible fiber, 4000 mm sensing range, top-view sensing and long-distance optical detection. These entities provide stronger selection context than weight or low-value secondary specifications. Within the E32 Series, bending radius, sensing distance, mounting size and sensing principle help differentiate closely related LT models. The E32-LT11R therefore combines long-range through-beam detection with highly flexible cable routing. For the related standard LT11 configuration with the same M4 head and 4000 mm sensing range but a 25 mm bending radius, the E32-LT11 2M provides the closest comparison.
