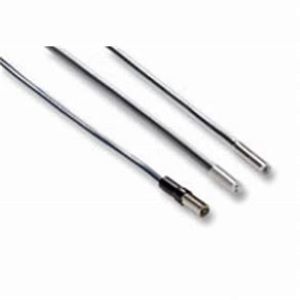

Omron E32-T11F 2M Fiber Optic Sensor
Omron E32-T11F 2M is a through-beam fiber optic sensor designed for long-distance object detection up to 4000 mm. Its cylindrical axial sensing head uses a top-view orientation, while the chemical and oil-resistant fiber construction supports sensing installations requiring a specialized cable structure. The pre-wired 2 m fiber uses a plastic core with a fluororesin sheath and supports a 4 mm bending radius for machine routing. IP67 protection and operation from -40 to 70°C support industrial sensing conditions. The E32-T11F belongs to the E32 Series within the through-beam fiber sensor range from Omron sensing products, connecting resistant fiber construction with long-range object detection.

| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-T11F 2M |
Omron E32-T11F 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cylindrical axial |
| Sensing Distance | 4000 mm |
| Connection Method | Pre Wired Cable, 2M Length |
| Sensing Method | Through-beam |
| Application | Object detection |
| Features | R4 chemical and oil resistant fiber |
| Temperature Range | -40-70 °C |
| Bending Radius | 4 mm |
| Free Cut | yes |
| Material Core | Plastic |
| Sensing Direction | Top-view |
| Material Sheath | Fluororesin |
| Degree Of Protection Ip | IP67 |
The Omron E32-T11F 2M Fiber Optic Sensor uses through-beam sensing for long-distance object detection at distances up to 4000 mm. Its cylindrical axial sensing structure directs the optical path along the sensing-head axis, while the top-view orientation defines how the sensing point is positioned toward the monitored target. Chemical and oil-resistant fiber construction is a primary model attribute, separating this version from general-purpose E32 through-beam sensors. The pre-wired 2 m fiber uses a plastic core with a fluororesin sheath and supports a 4 mm bending radius. IP67 protection and operation from -40 to 70°C define the supplied environmental characteristics. The important product relationships are through-beam detection, chemical-resistant fiber, oil-resistant fiber, cylindrical axial sensing, long sensing distance and object detection. These attributes provide stronger selection context than secondary physical values. Within the E32 Series, fiber construction, bending radius, sensing geometry and detection distance help differentiate related through-beam models. The 4000 mm sensing capability also establishes this model as a long-distance option within the supplied range. For another chemical and oil-resistant E32 through-beam sensor with the same 4000 mm sensing distance but a larger bending radius, the E32-T12F 2M provides the closest related comparison.
