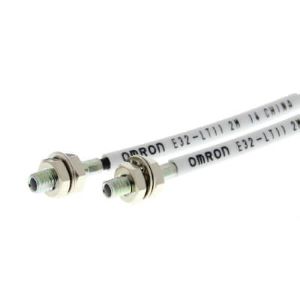

Omron E32-LT11 2M Fiber Optic Sensor

Omron E32-LT11 2M is an M4 through-beam fiber optic sensor designed for long-distance detection at sensing ranges up to 4000 mm. Its threaded M4 sensing head provides a defined mounting format, while the top-view sensing orientation directs the optical path toward the detection area. The 2 m fiber uses a plastic core with a polyethylene sheath and supports a 25 mm bending radius for cable routing between the sensing point and compatible fiber amplifier. IP50 protection and operation from -40 to 70°C define its supplied environmental range. The E32-LT11 2M belongs to the E32 Series within the through-beam fiber sensor range from Omron sensing products, supporting long-range optical detection in machine sensing systems.

Omron E32-LT11 2M Fiber Optic Sensor
BrandOmron
ProductFiber Optic Sensor
Model NumberE32-LT11 2M

Omron E32-LT11 2M Fiber Optic Sensor - Technical Specifications

SpecificationValue
ShapeThreaded
Sensing Distance4000 mm
SizeM4
Cable Length2 m
Sensing MethodThrough-beam
ApplicationLong distance detection
Sensing Surface Orientationtop view
Temperature Range-40-70 °C
Bending Radius25 mm
Free Cutyes
Material CorePlastic
Material SheathPolyethylene
Degree Of Protection IpIP50

The Omron E32-LT11 2M Fiber Optic Sensor uses through-beam sensing for long-distance detection at ranges up to 4000 mm. Its threaded M4 sensing head provides a compact and defined mounting interface, while the top-view sensing orientation establishes the optical direction toward the monitored area. The 2 m fiber uses a plastic core with a polyethylene sheath and supports a 25 mm bending radius. This cable construction separates the sensing location from the compatible fiber amplifier while providing the specified routing requirement. IP50 protection and operation from -40 to 70°C define the supplied environmental characteristics. The important product relationships are M4 threaded sensing, through-beam detection, 4000 mm sensing distance, top-view orientation, fiber optic sensing and long-distance detection. These attributes provide stronger model-selection context than weight or unrelated secondary specifications. Within the E32 Series, sensing principle, threaded size, detection range, fiber flexibility and sensing direction help distinguish individual through-beam heads. The E32-LT11 therefore combines an M4 sensing head with long-range optical detection. For a closely related LT11 variant with the same M4 through-beam configuration and 4000 mm sensing distance but a flexible fiber supporting a 1 mm bending radius, the E32-LT11R 2M provides the strongest model comparison.
