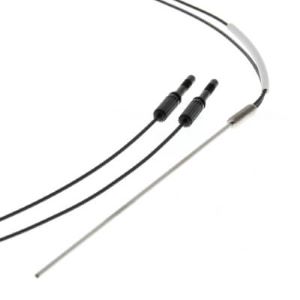

Omron E32-DC200F4R 2M Fiber Optic Sensor

Omron E32-DC200F4R 2M is a miniature diffuse-reflective fiber optic sensor designed for object detection at sensing distances up to 210 mm. Its sleeved sensing structure uses a top-view sensing direction, while flexible fiber construction supports installation where the sensing head and cable must fit into restricted machine spaces. The pre-wired 2 m fiber uses a plastic core with a polyethylene sheath and supports a small 1 mm bending radius for tight routing. IP67 protection and an operating range from -40 to 70°C support industrial sensing conditions. The E32-DC200F4R 2M belongs to the E32 Series within the diffuse fiber sensor range from Omron sensing products, supporting compact and flexible object detection.

Omron E32-DC200F4R 2M Fiber Optic Sensor
BrandOmron
ProductFiber Optic Sensor
Model NumberE32-DC200F4R 2M

Omron E32-DC200F4R 2M Fiber Optic Sensor - Technical Specifications

SpecificationValue
ShapeSleeved
Sensing Distance210 mm
Connection MethodPre Wired Cable, 2M Length
Sensing MethodDiffuse reflective
ApplicationObject detection
FeaturesFlexible fiber, Miniature
Temperature Range-40-70 °C
Bending Radius1 mm
Free Cutyes
Material CorePlastic
Sensing DirectionTop-view
Material SheathPolyethylene
Degree Of Protection IpIP67

The Omron E32-DC200F4R 2M Fiber Optic Sensor uses diffuse-reflective sensing for object detection at distances up to 210 mm. Its sleeved sensing structure provides a compact optical detection point, while flexible miniature fiber construction supports installation where cable routing space is restricted. The top-view sensing direction establishes the optical relationship between the sensing head and target. A key model attribute is its small 1 mm bending radius, allowing tighter routing than many standard fiber configurations. The pre-wired 2 m fiber uses a plastic core with a polyethylene sheath. IP67 protection and an operating temperature range from -40 to 70°C define the supplied environmental characteristics. The important product relationships are diffuse-reflective detection, sleeved sensing, miniature fiber construction, flexible routing, top-view sensing and object presence detection. These characteristics provide stronger model context than low-value secondary specifications. Within the E32 family, bending radius, sensing distance, sheath material and sensing-head structure help differentiate closely related DC200 variants. The E32-DC200F4R therefore combines short-range reflective detection with highly flexible cable routing. For another supplied DC200-series model with the same diffuse-reflective sensing principle but a longer 900 mm detection range, the E32-DC200BR 2M provides the closest related comparison.
