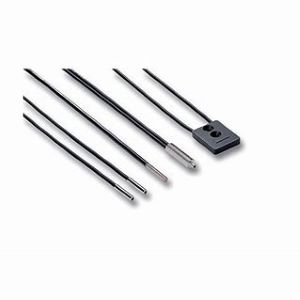

Omron E32-L24S 2M Fiber Optic Sensor

Omron E32-L24S 2M is a limited-reflective fiber optic sensor designed for transparent object detection at a short sensing distance of 4 mm. Its square sensing structure uses a flat-view orientation, creating a defined optical arrangement between the sensing head and transparent target. The pre-wired 2 m fiber uses a plastic core with a polyethylene sheath and provides an R10 bending radius for cable routing. Operation from -40 to 70°C and IP50 protection define the supplied environmental characteristics. The E32-L24S 2M belongs to the E32 Series within the limited-reflective fiber sensor range from Omron sensing products, combining flat-view sensing with short-range transparent object detection where target type and sensing principle are important selection factors.

Omron E32-L24S 2M Fiber Optic Sensor
BrandOmron
ProductFiber Optic Sensor
Model NumberE32-L24S 2M

Omron E32-L24S 2M Fiber Optic Sensor - Technical Specifications

SpecificationValue
ShapeSquare
Sensing Distance4 mm
Connection MethodPre Wired Cable, 2M Length
Sensing MethodLimited reflective
ApplicationTransparent object detection
FeaturesR10 fiber
Temperature Range-40-70 °C
Bending Radius10 mm
Free Cutyes
Material CorePlastic
Sensing DirectionFlat-view
Material SheathPolyethylene
Degree Of Protection IpIP50

The Omron E32-L24S 2M Fiber Optic Sensor uses limited-reflective sensing for transparent object detection at a specified distance of 4 mm. Its square sensing structure uses a flat-view orientation, creating a defined optical geometry between the sensing head and transparent target. The short sensing distance and limited-reflective principle are the main functional characteristics, separating this model from through-beam, diffuse-reflective and retro-reflective E32 sensing heads. The pre-wired 2 m fiber uses a plastic core with a polyethylene sheath and provides an R10 bending radius for cable routing. IP50 protection and operation from -40 to 70°C define the supplied environmental characteristics. Important attributes include limited-reflective sensing, transparent object detection, flat-view orientation, square sensing structure and 4 mm sensing distance. Within the E32 Series, target type, sensing principle, optical orientation and detection distance are especially useful when selecting a fiber head for transparent targets. The E32-L24S therefore provides a specialized short-range optical arrangement for transparent object sensing. For another supplied E32 limited-reflective model designed for transparent object detection with a longer 15 mm sensing distance and flat-view structure, the E32-L16-N 2M provides the closest functional comparison.
