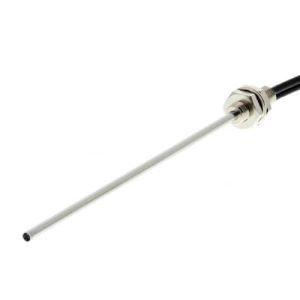

Omron E32-DC200BR 2M Fiber Optic Sensor
Omron E32-DC200BR 2M is a miniature diffuse-reflective fiber optic sensor designed for object detection at sensing distances up to 900 mm. Its sleeved sensing structure combines compact target detection with flexible fiber construction, while the top-view sensing direction defines the optical path toward the object. The pre-wired 2 m fiber uses a plastic core with a PVC sheath and supports a 25 mm bending radius for machine cable routing. IP67 protection and an operating temperature range from -40 to 70°C support industrial sensing conditions. The E32-DC200BR belongs to the E32 Series within the diffuse fiber optic sensor range from Omron sensing products, supporting flexible long-distance object detection.
| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-DC200BR 2M |
Omron E32-DC200BR 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Sleeved |
| Sensing Distance | 900 mm |
| Connection Method | Pre Wired Cable, 2M Length |
| Sensing Method | Diffuse reflective |
| Application | Object detection |
| Features | Flexible fiber, Miniature |
| Temperature Range | -40-70 °C |
| Bending Radius | 25 mm |
| Free Cut | yes |
| Material Core | Plastic |
| Sensing Direction | Top-view |
| Material Sheath | PVC |
| Degree Of Protection Ip | IP67 |
The Omron E32-DC200BR 2M Fiber Optic Sensor uses diffuse-reflective sensing for object detection at distances up to 900 mm. Its sleeved sensing structure combines a compact detection point with flexible miniature fiber construction, making sensor-head format and cable flexibility important model attributes. The top-view sensing direction defines how the optical path is positioned toward the target. A pre-wired 2 m fiber provides separation between the sensing head and compatible fiber amplifier, while the plastic core and PVC sheath define the supplied cable construction. The fiber supports a 25 mm bending radius. IP67 protection and an operating temperature range from -40 to 70°C support industrial sensing conditions. The important product relationships are sleeved fiber sensing, diffuse-reflective detection, flexible miniature construction, top-view orientation and long-distance object detection. These attributes provide stronger product-selection context than weight or secondary specifications. Within the E32 Series, sensing distance, sheath material, head structure and fiber flexibility help distinguish related DC200 models. The 900 mm sensing capability is particularly useful for differentiating this variant from shorter-range versions. For another supplied DC200-series diffuse-reflective model using a flexible miniature fiber structure, the E32-DC200F4R 2M provides the closest related comparison.
