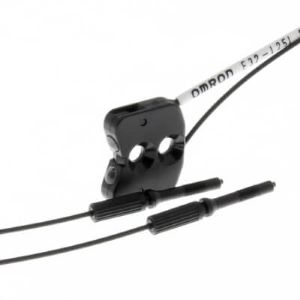

Omron E32-L25L 2M Fiber Optic Sensor

Omron E32-L25L 2M is a limited-reflective fiber optic sensor designed for object detection at a short sensing distance of 7 mm. Its square sensing structure uses a top-view orientation, creating a defined optical arrangement between the sensing head and target. The pre-wired 2 m fiber uses a plastic core with a polyethylene sheath and provides a 10 mm bending radius for cable routing. Limited-reflective sensing and the short 7 mm detection distance are the main functional characteristics that distinguish this model from through-beam and diffuse-reflective E32 sensors. IP50 protection and operation from -40 to 70°C define its environmental range. The E32-L25L 2M belongs to the E32 Series within the limited-reflective fiber sensor range from Omron sensing products for short-range optical object detection.

Omron E32-L25L 2M Fiber Optic Sensor
BrandOmron
ProductFiber Optic Sensor
Model NumberE32-L25L 2M

Omron E32-L25L 2M Fiber Optic Sensor - Technical Specifications

SpecificationValue
ShapeSquare
Sensing Distance7 mm
Connection MethodPre Wired Cable, 2M Length
Sensing MethodLimited reflective
ApplicationObject detection
FeaturesR10 fiber
Temperature Range-40-70 °C
Bending Radius10 mm
Free Cutyes
Material CorePlastic
Sensing DirectionTop-view
Material SheathPolyethylene
Degree Of Protection IpIP50

The Omron E32-L25L 2M Fiber Optic Sensor uses limited-reflective sensing for object detection at a specified distance of 7 mm. Its square sensing structure provides a compact optical head, while the top-view orientation establishes the sensing direction toward the target. The limited-reflective principle and short detection distance are the defining functional characteristics of this model, separating it from E32 through-beam and diffuse-reflective sensors intended for longer sensing ranges. The pre-wired 2 m fiber uses a plastic core with a polyethylene sheath and provides a 10 mm bending radius for cable routing. IP50 protection and operation from -40 to 70°C define the supplied environmental characteristics. Square construction, limited-reflective sensing, top-view orientation and 7 mm sensing distance are the main attributes for selecting E32-L25L. These characteristics make sensing principle and optical geometry more relevant than secondary mechanical specifications when comparing related E32 models. The sensor therefore provides a clearly defined short-range optical configuration for object detection. For another supplied E32 limited-reflective sensor using a square sensing structure but offering a 50 mm sensing distance and small-spot lens configuration, the E32-L15 2M provides a useful related model for comparing limited-reflective detection ranges and optical arrangements.
