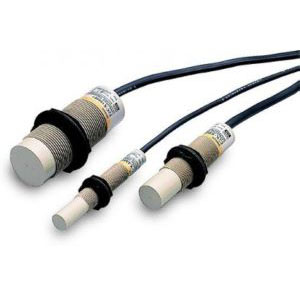

Omron E2K-X15ME1 2M Proximity Sensor
The Omron E2K-X15ME1 2M Proximity Sensor offers Capacitive, Unshielded, 15 mm Sensing distance, DC 3-wire, NPN NO, Pre-wired 2 M Cable , 12 to 24 VDC Power supply voltage, IP66 Protection. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2K Series.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2K-X15ME1 2M |
Omron E2K-X15ME1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Capacitive |
| Sensing Distance | 15 mm |
| Setting Distance | 0 to 10 mm |
| Output Configuration | DC 3-wire, NPN |
| Operation Mode | NO |
| Connection | Pre-wired 2 M Cable |
| Differential Travel | 4% to 20% of sensing distance |
| Detectable Object | Conductors and dielectrics |
| Standard Sensing Object | 50 Γ 50 Γ 1 mm |
| Response Frequency | 100 Hz |
| Current Consumption | 15 mA max. |
| Control Output Load Current | 200 mA max |
| Indicator | Detection indicator (red) |
| Protection Circuit | Reverse polarity protection, Surge suppressor, load short-circuit protection, output reverse polarity protection |
| Ambient Temperature Range | Operating/Storage: β10 to 55Β°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/Storage: 35% to 95% (with no condensation) |
| Material | Heat-resistant ABS, Polyacetal |
| Degree Of Protection | IP66 |
| Weight | Approx. 205 g |
The Omron E2K-X15ME1 2M is typically considered together with other sensors in the E2K-X Cylindrical Proximity Sensor family because they follow similar mounting patterns, supply ranges, and adjustment behaviour. In practice, engineers often review related models such as Omron E2Q6-N20E3-H (Rectangular, 20 mm sensing, Shielded, NPN, NO + NC, Terminal block), Omron E2S-W22 1M (Compact Square Type, 2.5 mm sensing, Unshielded, DC 2-Wire, NC, Pre-wired 1 M Cable), and Omron TL-N20ME2 2M (Rectangular, 20 mm sensing, Unshielded, DC 3-wire, NPN, NC, Pre-wired 2 M Cable) when selecting the most suitable variant for a tank, chute, conveyor, or compact fixture location. Comparing type, usable sensing distance, mounting style, output configuration, switching mode, and connection method helps match each sensor to the available mechanical space and wiring layout. The E2K-X15ME1 2M fits naturally into panels, machine frames, dosing systems, and process equipment where a robust Omron Cylindrical Proximity Sensor is required for repeatable switching in industrial environments.
